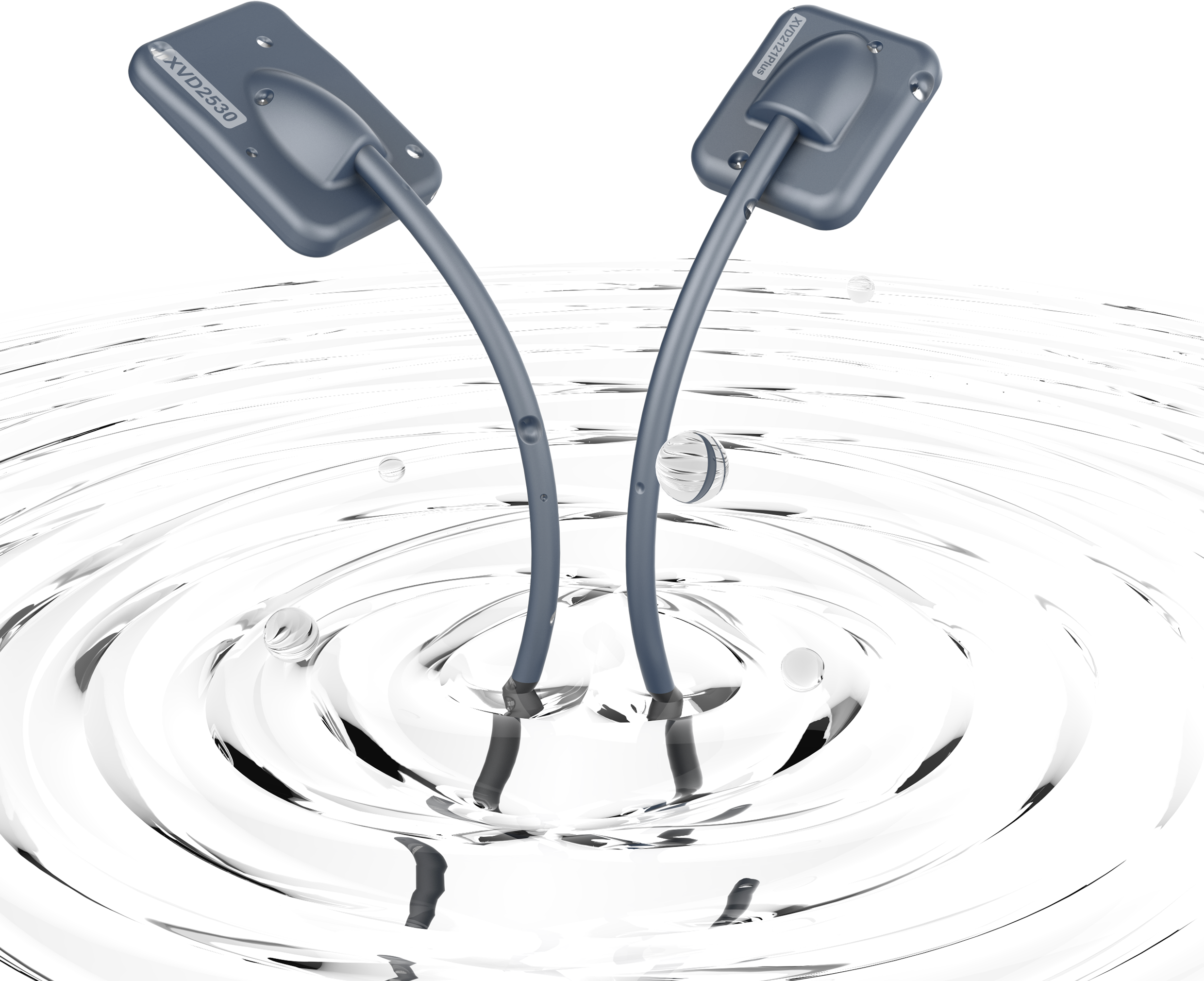

XPECT VISION Photon-Counting Intraoral X-Ray Imaging System Sensor Dental X-Ray Detector.

First-ever Photon-Counting Intraoral X-Ray Imaging System.It is a disruptive and affordable dental imaging system that enables exquisite imaging details in the DIGITAL era.

Feature:

Photon Counting Detector Technology

Photon counting detector technology is applied in intraoral imaging for the first time, converting X-rays into digital signals directly; and yielding high dynamic range, high contrast-resolution images at comparatively lower dosage.

Cost Effective

Our sensor/ detector is totally digital, without a need for film processing. Moreover, our photon-counting detector is manufactured with standard microelectronics fabrication process, thus enjoying sizeable cost advantage.

Extraordinary Usability

Compatible with the currently available imaging technology on the market, the XLinearVision™ can work with both film and digital radiogra­phy systems, fitting well into most practices of radiography imaging applications.

Profound Reliability

The sensor casing is purposely designed to resist shocks, bite, and drops to ensure product durability. It is absolutely waterproof, able to be immersed in disinfecting solution for better hygienic and safety protection. The protective sheaths reduce the risk of cross-contamination and protect plates from scratches and heat.

Optimal Workflow

USB connection to the computer supports lighting-fast data trans­mission and enables real-time imaging. User-friendly design also helps to optimize workflow.

Powerful Post-Processing Software

Multiple image post-processing algorithms help to improve image contrast and sharpness with more exquisite details. *Disposable protective sheaths are provided to protect the sensor.

Specification:

Detector Technology: Photon-counting

Effective Imaging Area: Size 1: 21*21mm  Size 2: 25*30mm

Sensor Size: Size 1: 26.5*32 mm   Size 2:30*37mm

Measured spatial resolution: 12~ 14 Lp/mm

Connection: USB PORT

Sensor Cable Length: 1.5～3 m (extendable)

Support System: Windows 7 SP1, Windows 8, Windows 10.
