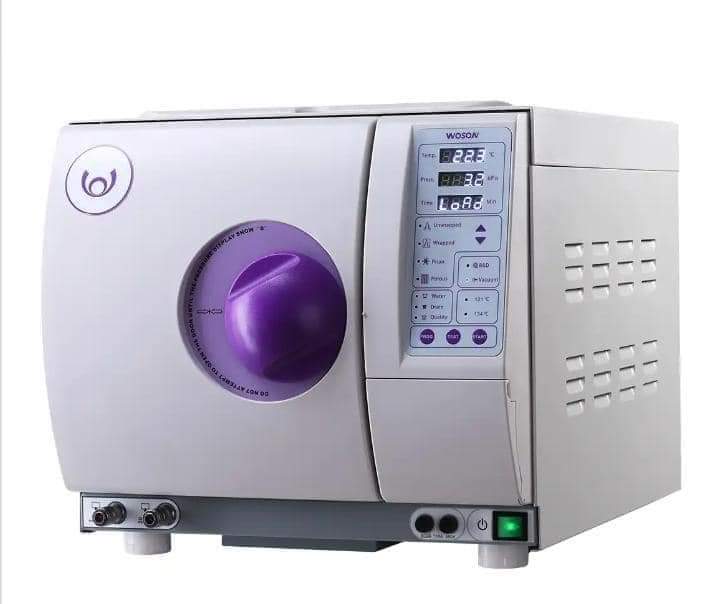

-The newly-designed model with opening water tank on the top, strictly meets the standard of EN13060, which makes wash and cleaning much more convenient.

It adopts European B standard with 3-times pre-vacuum preceding vacuum drying. Residual humidity is less than 0.2%.
Vacuum measurement reaches-0.8bar. It sterilizes and sanitizes miscellaneous packed or unpacked medical instruments, Whether solid or A-type hollow, whether with multi-apertures or inset pipes. It efficiently tides air from every hollow area of any hollow instrument, such as hand-piece, making sure that water steam reaches every corner. Fuzzily computer controlled, digital bright show. The interface is modularized panel for easy operation. It is installed with BOWIE&DICK which measures the penetration of water steam. Mini printer can be attached to record the process of sterilization.

ADVANTAGES:

-High density air filter,eliminating impurity in air,ensuring the returned air dry and pure.
-Efficient double-head vacuum pump,low noise,vacuum ability could get -0.92Bar,double head ensure the balance during working and stable vacuum state in the chamber.
-Electronic data output,the sterilization information can be saved into memory disk as a txt file,in connection with computer to analysis,realizing digital sterilization.

-The multiplex tray holder of sterilizer is single stretching molding,painting and polishing treatment,with good compression bear and suit various load.It could set 5 trays on the holder simultaneously when revolve it 90°
-Circular heating little difference in temperature.
-Pressure-prevention and corruption-resistance makes it highly reliable.
-Alloy heating loop protects against damage by no-water heating.
-Spcious cavity makes it easy to clean.

-Original fuzzy control system driven by steam generator adoptsPWM(pulse with modulation),able
to discriminate the fine differences in temperature allowances and to adjust the modulated waves
correspondingly thus making temperature rise at the same speed each time.
-Chamber is made of purple glass surface copperplate，
plastically metamorphosed by the extrusion under 500-ton oil pressure
