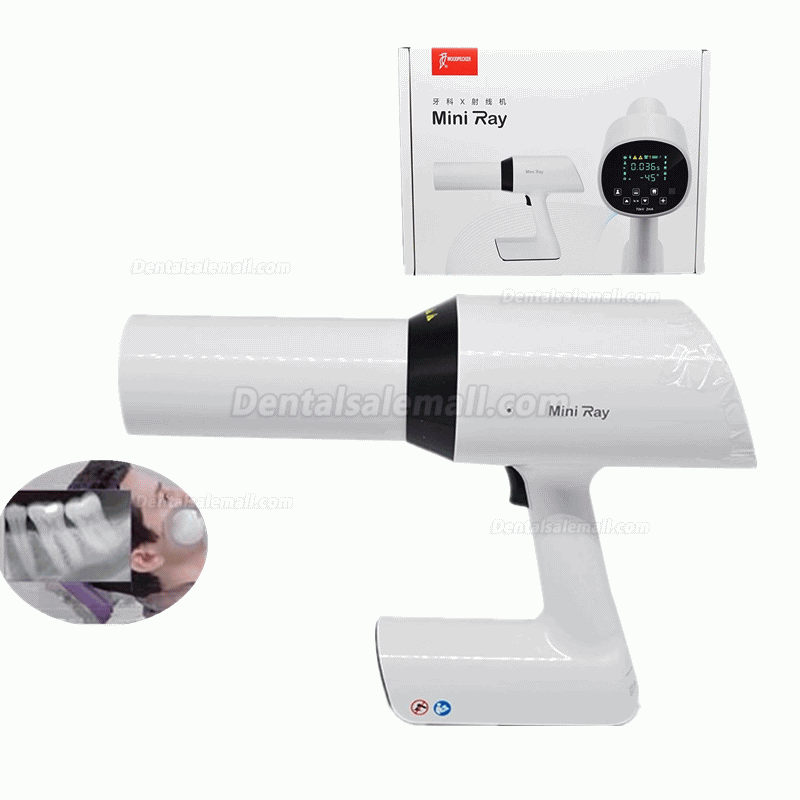

This is a portable Dental X-Ray Device, which is used to photograph teeth and obtain the Dental image information.


Features:
Small size, light weight, portable.
Memory function, just once exposure, can memory exposure parameters forever
LCD screen, all function could see clearly
Tact switches, smart control, convenience operating
High Frequency power supply, low radiation, handsome appearance
Developing in light room, image in one minute, be used for diagnoses at once
Be use of the intraoral cavity digital imaging system;



Specifications:
Tube voltage: 60KV
Tube current: 1.2mA
Focus size: 0.4mm
Frequency: 40KHZ
Exposure time: 0-2.5s
Charge voltage: AC100V-240V 50/60Hz
Battery: 14.8V 4400mAh
Leak radiation: Outside one meter≤0.002mGy/h
Focal spot to skin distance: 140mm
Net weight: 2.6kg
Package size: 280×270×250mm
Gross weight: 5.0kg


Technical parameters:
X-Ray Unit Input Power:16.8VAC, 2.0A
X-Ray Unit Output Power:80W
Li-ion Charger Input Power:100-220V, 50-60Hz
Li-ion battery Capacity Output Power:14.8VDC, 10A
Li-ion battery Capacity:7800mAh
Frequency:20KHz
Total Filtration:1.75mmAl
Exposure time:0.2-2s
Nominal Focal Spot Value:0.3mm
Tube:60KV/1mA (build in adjustable)
Package size:31x28x21cm
G.W.:4 kg;
