Woodpecker iLED Max Light Cure

The woodpecker iLED MAX. More-focused light output.

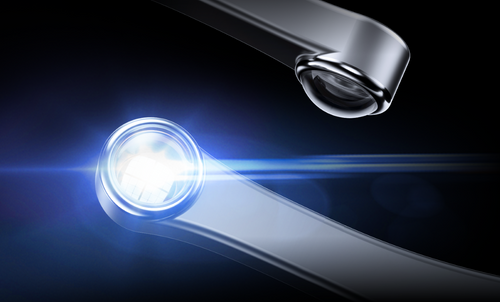

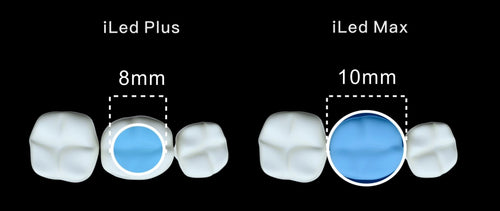

Upgraded focused light output
Unique Woodpecker technology of focused light output reduces 55.87% light angle, allowing more concentrated energy and higher curing efficiency.

Upgraded light intensity
Two modes for options; with the maximum light intensity of 2300mw/cm², curing 2 mm resin in 1s, which makes it especially suitable for orthodontic brackets, porcelain veneers and post-core adhesives.

Upgraded wide spectrum
The emissions wavelength range of iLED Max Wide Spectrum Curing Light is 385mm-420nm. The additional band can better curing the resin materials containing new-style photoinitiators such as TPO. For example, restoration materials such as Tetric N-Ceram Bulk Fill (Ivoclar), Amelogen Plus (Ultradent), and ENA Hn(Micerium). The additional wave band can also reduce the risk of resin shedding and incomplete curing.

Using a constant power output this light has two program settings:

• P1 - Turbo Mode - Light intensity 2300 - 2500 mw/cm2 for 1 - 3 second cures.
• P2 - Normal Mode - Light intensity 1000 - 1200mw/cm2 for 5 - 20 second cures.
• With the Turbo mode the light has a cure time of 1 second for 2mm of resin, with light intensity of up to 2300mw/ cm²

It also features:

• a 360° fully rotatable head, disposable covers and a rechargeable lithium battery.
• Constant Power Output
• 360° Curing
• Fluid Design
• 1 sec. for Curing

Technical specifications:

• Dimensions: 25mm×25mm×240mm
• Net weight: 278g
• Power Input: 100V to 240V, 50Hz/60 Hz
• Wave length: 385nm-515nm
• Light intensity: 1000 mW/cm2~2500mW/cm2
