Automatic Voltage Transformer

RiX-70 DC appropriately works in a range of 100 to 240 V. The electrical system automatically detects the power wattage, allowing a safe and proper functioning with every voltage.

0.4 mm Focal Spot

The base for an accurate diagnostic is a good image. RiX-70 DC with focal spot 0,4 mm gives you incredibly clear images with a high contrast range.

Reduction of radiation dose

The high frequency generator allows radiation stability eliminating the soft radiation that does not produce images but can be harmful for the patient.

Tube Voltage Selector

RiX-70 DC operates either 60, 65 or 70 kV allowing to reach excellent results to satisfy your needs:

Voltage 60 kV for caries detection or periodontal applications; 70 kV for endodontic applications, including visualization of canals, detection of root fractures and diagnosis of periapical lesions due to pulpal inflammation.

Small details, great results.

Automatic setting of exposure time from 0.01 to 2.0 seconds, depending on the patient and tooth characteristics

Easy-to-read main control panel, with quickly identifiable icons.

From the control panel you can easily:

• Select the exposure parameters according to the patient morphology, tooth type and image receptor.
• Adapt the radiation dose to lower or higher values.
• Modify the exposure time for digital or film.
• Select from 60, 65 or 70 kVp

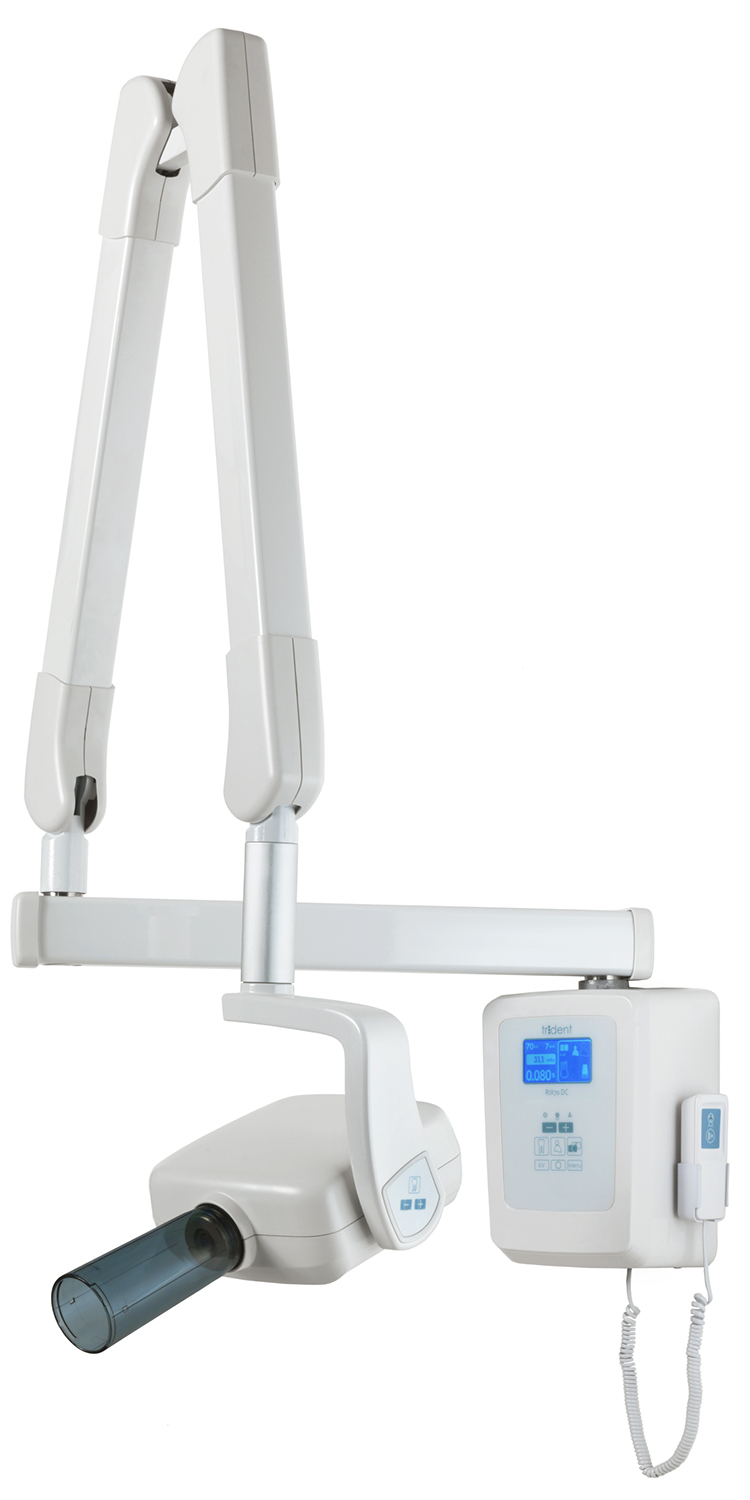

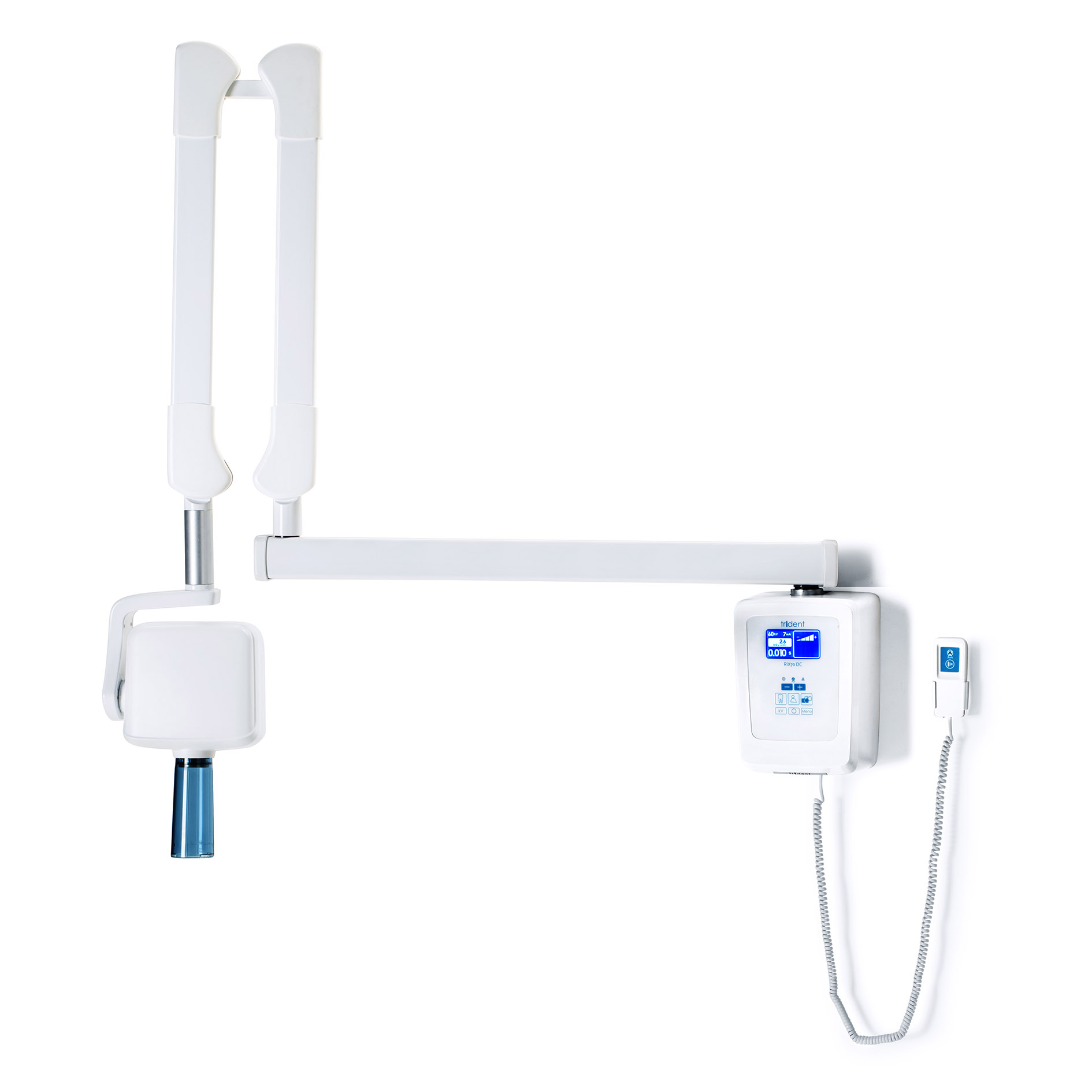

Modern and clean design to offer you:

• Compact and lightweight tube head.
• Steady and strong support arm.
• Hand switch provided with 3 mt coiled cord.
• Clear and intuitive remote control (optional)
• Rectangular collimator 35 x 43 mm (optional).
• Additional keypad installed near the tube head, for manual adjustment of the exposure time and tooth type.

Monoblock

Tube Voltage

60 kVp ± 8 %
65 kVp ± 8 %
70 kVp ± 8 %

Anodic current

7 mA± 10 %

Output radiation linearity

< 0.2 secondo IEC 60601-2-63

Duty cycle

1/30 6 seconds minimum

Nominal power

490 W (70 kVp - 7 mA)

Total filtration

>1.5 mm Al eq.

Current transformer insulation

Oil bath

Cooling

As per convention

Focal spot

0.4 mm (IEC 60336)

Leakage radiation

<0.15 mGy/h at 1 m

Max thermal capacity of monoblock

130 kJ

Focus to skin distance

20 cm (8 5/8 inch)

Output radiation Field

Φ 60mm (2 3/8 inch)

Bean limiting device (additional)

Rectangular 36 x45 mm

Dose intensity accuracy

< 50%

X-Ray Tube

Model

Toshiba D-045

CEI OX70-4

Inherent filtration

< 1 mm Al eq

0.5 mm Al eq.

Target angle

16°

20°

Filament current

Max. 3 A

1.5 – 2.1 A

Max filament current

3 V

1.7 – 3.1 V

Anodic thermal capacity

4.3 kJ

7 kJ

Max anodic dissipation

100 W

110 W

X RAY beam covering at 200 mm from the focus

>= 70 mm

>= 70 mm

Focal spot

0.4 mm (IEC 60336)

0.4 mm (IEC 60336)

Target material

Tungsten

Tungsten

Max nominal voltage

70 kV

70 kV
