Interact Labs

Make the whole learning and collaborating experience engaging and fun

TACT Description:

Transforms any flat surface to be interactive!



Features:



TACT provide up to 150 inch interactive service.



TACT enables interactive teaching writing everything taking notes saving video video recording.



TACT enables users to control PC Via the display interactively and to use all its capabilities (access to material, visual aids, videos & internet)





Features:



TACT can be used to convert any display area like LCD to an interactive display



Pin mood enabling text recognition and windows pen features



Up to four multi users can interact at the same time



Compatibility with extended mode



Collaboration is saved on TACT device where no re-calibration needed even if the computer is changed



Plug and play experience no software needed to run TACT



Simple and easy user interface



Support in various operating systems windows, Linux and Mac.





Product items and parameters:

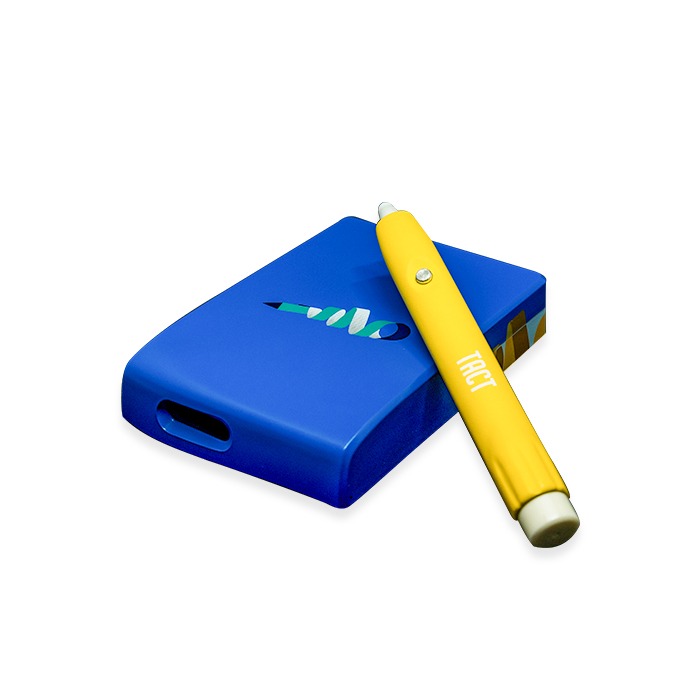

The device:

Dimensions:

 135.4 mm (L) X 94 mm(W) X 25.6 mm(H)



Screen size:

up to 100 inches screen





The Pen:



Dimension:

144 mm (length) X 14.5 mm (Diameter)

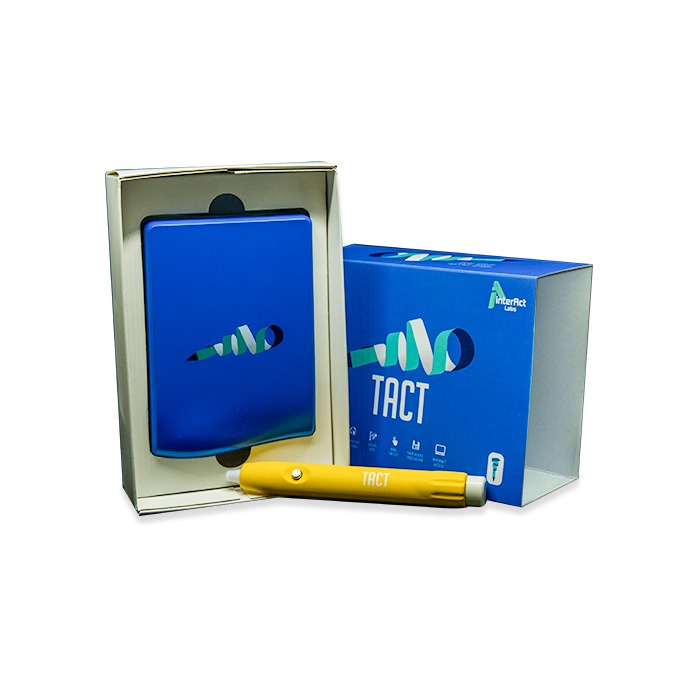

Accompanied accessories:

TACT software

USB cable

Extendible USB Cable (3m-10m)

Wall stand for TACT device



Accompanied software:

Free software for simulating whiteboard.

(Note: It can work with any other whiteboard simulator program)







Technical specifications:



The pen:

power demand 1.5v AAA battery x 2



The Device:

Technology use or induction way infrared & optical imaging.



Calibration: 6 points.



Power supply: USB (no external power needed)



Power consumption: 1W, work under USB 5V, electricity less than 200 MA.



Single interface USB 2.0 USB 3.0.



Resolution 2048 X 768



frame sampling time (Response time or scan speed): 2.5 ms.



Response speed or cursor speed: (400 frame sampling rate).



Transmission speed 512 kbps.



Rejection ratio 4:3, 16:9, 16:10.



Optimized cursor jittering +/- 2 pixle (for 80 inch screen)



PC Requirements:



Minimum requirement	Recommended requirement
Dual Core 2 GHZ	Intel i3 or higher	CPU
1G	2G	RAM
150MB	512 MB	HDD Graphic
512 MB	1 G	Card
Windows 7 (32- bit)	Windows 10 (64-bit)	OS



Great!
So here is a link for the demo:

And there is an Arabic version also,

3D models:
Here is an example for using Tact with 3D models:
https://drive.google.com/file/...
