New Top Inlay Type Water Tank

Strictly meets the standard of EN13060, which makes wash
And cleaning much more convenient


European B standard

Standard Class B with three times vacuum and drying, the remaining temperature of sterilized instrument is less than 0.2%



High Vacuum Degree
The vacuum data can reach -0.8bar, it fits various instrument, including package、unpackaged、solid、hollow、multi-apertures and inset pipes. It makes sure the instrument can be sterilized  completely.

Rapid Drainage Connector



Automatic water adding is available,
Rapid drainage can be realized by plugging in Connector

Steam Generator
Original steam generating fuzzy control system with PWM
Pulse width modulation Carefully feel a slight-difference
In the chamber, adjusting the  corresponding duty
Cycle modulation. Each time, the chamber  temperature
Rising rate is the same

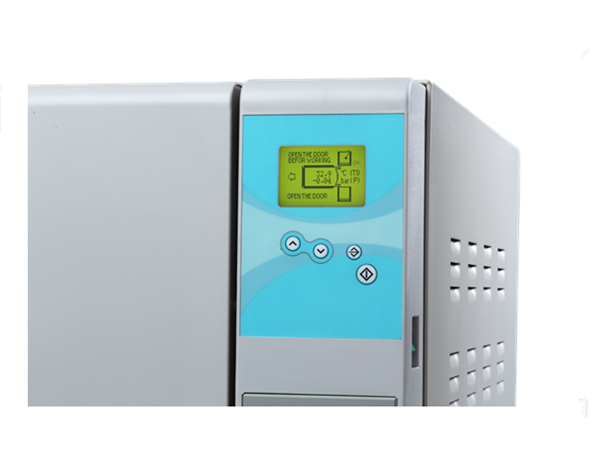

Intelligent Operation Panel


4-Button panel with the LCD display; Humanization design, fuzzy control modularization simple operation interface.



Special Function
6 languages display system: English, Italian, Spanish, Russian, Portuguese, French
Special program: Prion, Tampon, user defines, helix test etc..

Manual and automatic water adding meet your different needs


Internal Printer
Built-in printer which can record the sterilizer information

Sterilization Class

CLASS B

Sterilization Temperature
121°C, 134°C

Operation Temperature
5-40°C

Main water tank volume:
23L (4L)

18L (3.5L)

Water consumption in one cycle
cosi_ (min) 0.18L (max)
Water Supply System
Build-in water tank easy to clean Cubage 3.5 or 4L
