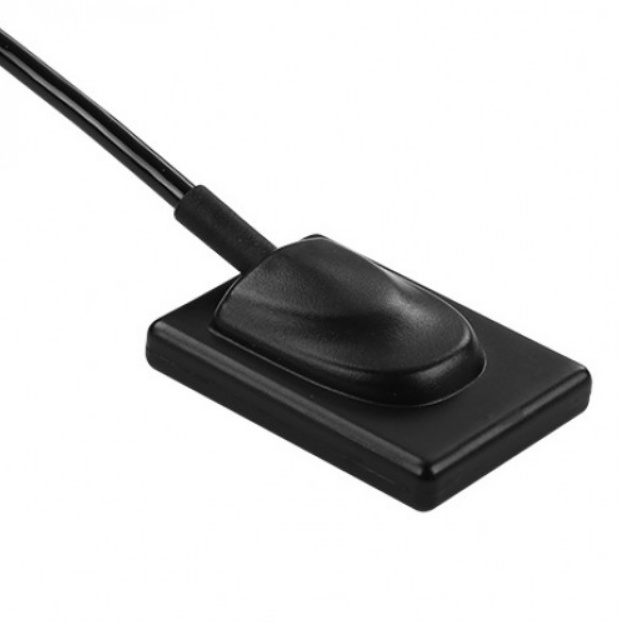

Sensor DS530
-Sensor external dimensions: 37.0*24.5*2.5mm
- Sensing region: 30X20mm (600mm2)
- Sensor pixel region: 1580*1050 pixels
-Sensing Pixel: 3.2 million pixels

- Pixel size: 20*20um
- Resolution: >20 line / mm
- Life: >100,000 times

Line Long (Material - PU): 3m
Grayscale: 12 bits
Connection: USB Standard

 Sensor external dimensions  37.0*24.5*2.5mm

 Sensing region  30*20mm (600mm2)

 Sensor pixel region  1580*1050 pixels

 Sensing Pixel  3.2 million pixels

 Pixel size  20*20um

 Resolution  >20 line / mm

 Life  >100,000 times

 Line Long (Material - PU)  3m

 Grayscale  12 bits

 Connection USB Standard

Description:

Material: APS

Sensing area:30X20mm (600mm2)

Sensor Pixels:3.2 million pixels

Pixel size:19x19um

Resolution:> 20 lp / mm

Gray scale:12 bit

Life:> 100000 times

Dimensions:37.0x24.5x5.5mm

Line length (Material - Polyurethane):3m

Connection:USB standard

Place of Origin:Italy

Sensor characteristics:

World recognized outstanding image quality, CRA assessed the test lab's top APS sensor

Sensor housing using ultrasonic welding technology, the use of the patient can not easily be chewed. The unique design of smooth-sided triangular fillet sensors are comfortable without reducing the image size.

Direct USB2.0 connection, no external power supply

Built-in image converter chip

Programmable controller is no longer needed, more convenient and more concise

IP67 waterproof rating

3m cable (polyurethane material, can be extended to a maximum length of 18m)

Protection against accidental drops (1m at up to 15 times) to avoid

Image acquisition time of 3 seconds

Entire Chinese operating software

Free upgrade for the online version

Software features:

Straightforward, simplified Chinese version of the software, without specialized training can also be used

Image Information convenient and easy to manage. Could easily create patient files can also be based name, recording time, medical record number, etc. easily retrieve.

With printing capabilities, and any printer can cooperate to achieve the image printing.

With images zoom in and out function.

Relief capabilities, you can highlight the three-dimensional structure of the picture, making the structure of the teeth is more three-dimensional, plug more legible.

Can use different colors to represent different dental film three-dimensional structure, so that the edges of various structures more clearly distinguished.

Has a positive function, you can put the negative into a positive imaging imaging, medical observation easier. And has a measuring function.

A flashlight, with a high contrast, to observe the local details, the details can clearly distinguish the difference. And there are notes feature, you can add a comment on any picture, the same as the bookmark feature to alert the attention of those who read the piece.

There measurement functions

Another online version, does not limit the number of installation, which can be installed on multiple computers.
