Specifications

Regular

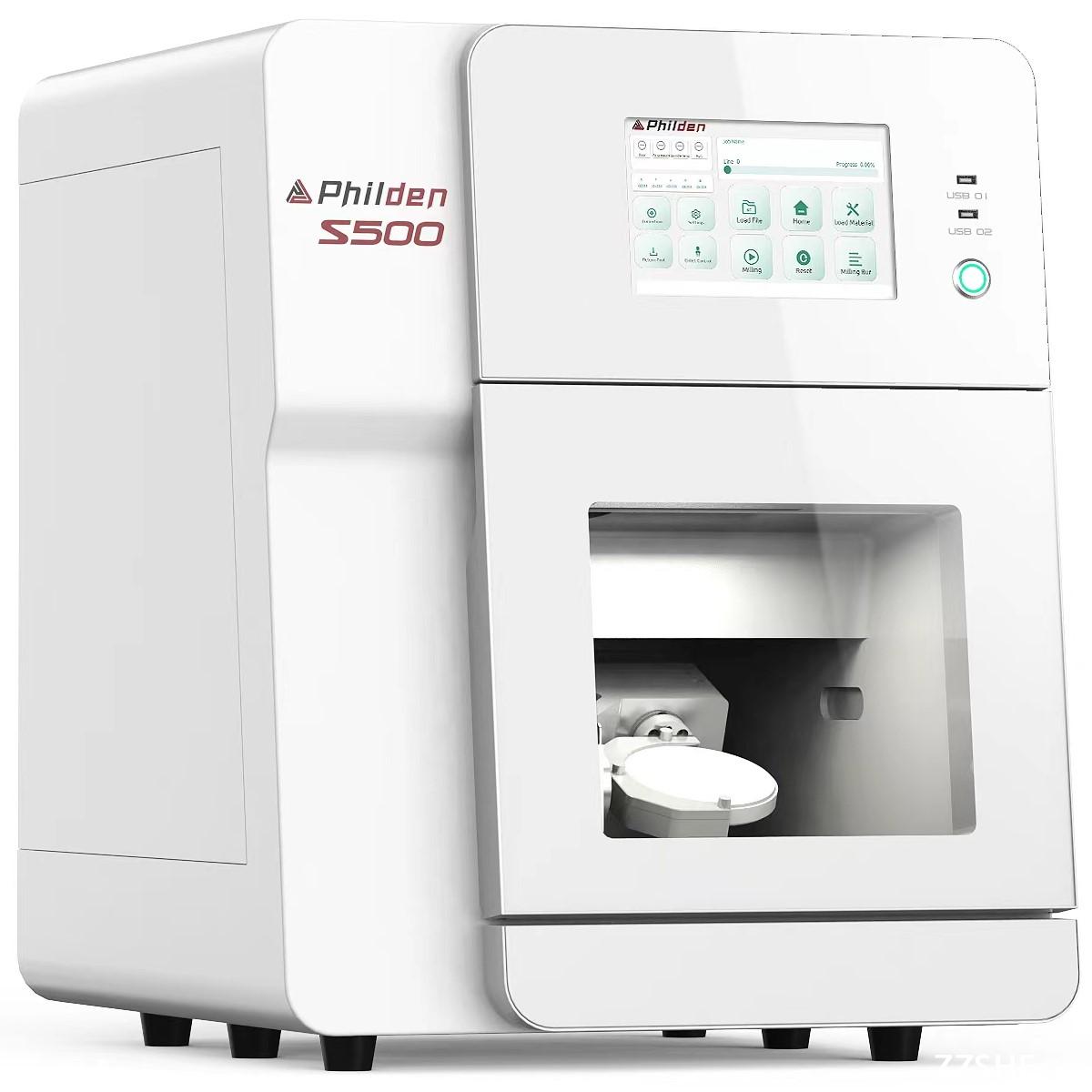

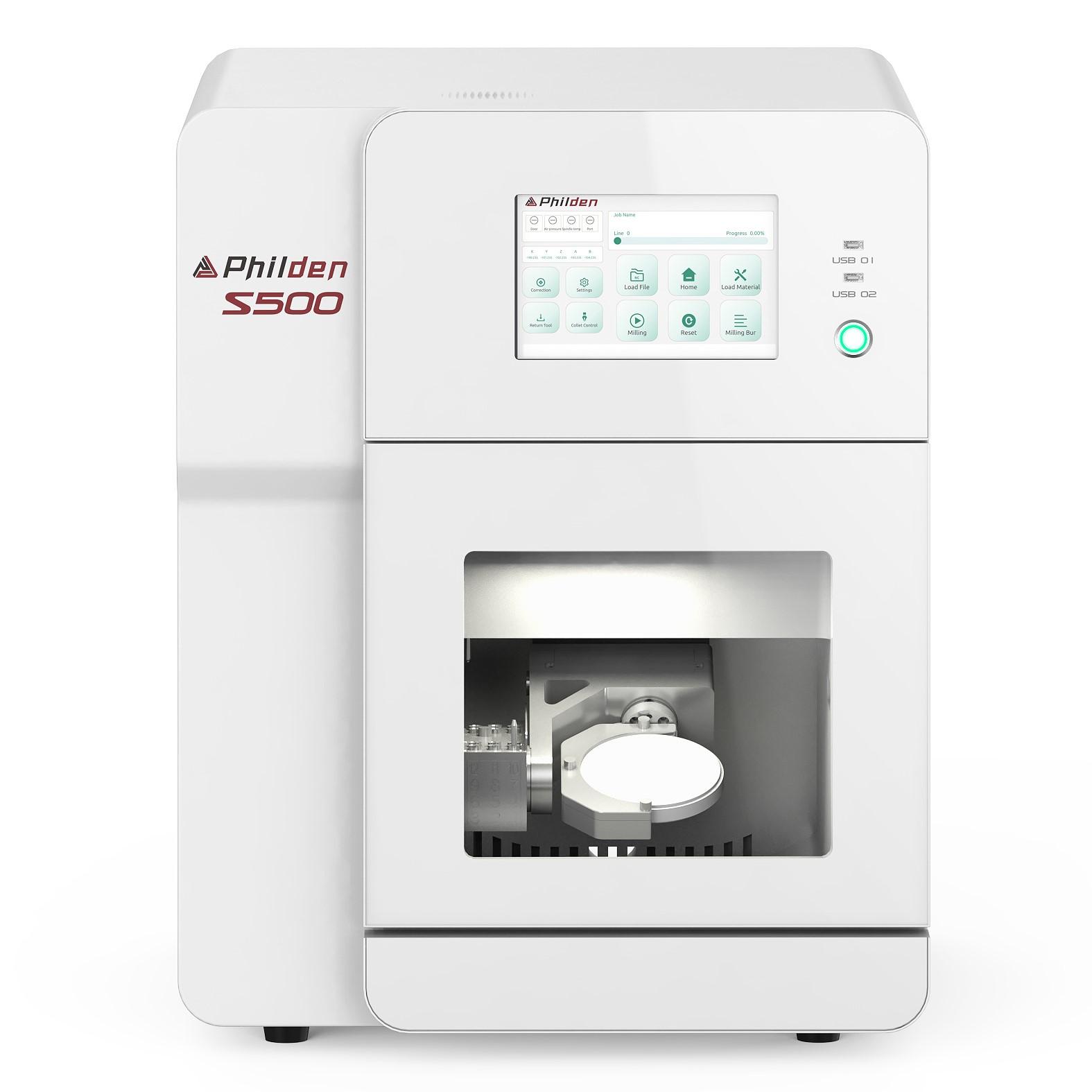

• Model: S500.
• Method: Dry milling.

• Material: Zirconium, wax, PMMA, composite material, and soft metal size:98.5mm Secondary clamp（optional）.
• Restorations: Crown， Coping, Veneer, Inlay/Onlay, Bridge, full denture, and all on X.

Basic System

• Structure: Solid cast aluminum body.
• Case: Steel plate, medical white high-gloss paint, working hatch, accessory drawer.
• Axis: 5 axis.
• Linear axis: Precision ball screw, precision guide rail, repeat accuracy ±5μm， precision motor travel.
• X/Y/Z axis: 176/134/100mm.
• The axis of rotation: Precision motor, precision harmonic reducer, repeat accuracy±0.01° A axis:±32° B axis:±360°.
• Control system: Integrated FPGA high-speed parallel processing command with a real-time operating system that supports standard G command (RS274X) and extended commands. Integratied frequency converters for synchronous and asynchronous motors, make it more flexible and compatible. Support multiple analog and digital IOs.
• LED: Multiple LED color indicator Ready&Milling (White)/Finished milling(Green)/Error(Red).

Spindle

• Regular: High-frequency asynchronous spindle, tool change with air (do not rotate during tool changing), air seal to prevent foreign matter from entering.
• Rotate speed: Maximum 60,000 rpm.
• Power supply: 900W（5S，Pmax），400W（S6），250W（S1）.
• Bearing: High-speed ceramic ball bearings, Eccentricity＜3um.
• Chuck: Suitable for Shank diameter 4mm, 50mm length milling burs.

  Automatic device
• Tool library: 12 tools, Integrated tool gauge.

  Milling mode
• Dry milling: The spindle ejects high-pressure gas for cleaning and cooling during milling.

  Conditions
• Compressed air: 4-8bar(0.4-0.8Mpa)， Air purity in accordance with: ISO 8573-1:2010, need to be equipped with a cold dryer
• Power supply: 100-120VAC, 200-240VAC, two types switchable, 50-60HZ
• Data interface: RJ45 Ethernet interface, 10/100M self-adaptive, required for networking.
• Temperature: 10-45℃
• Humidity: 80% relative humidity, non-condensing

  Certificate
• All models: CE & FCC

  Size&Weight
• Size: L/W/H：495mm*593mm*627mm
• Weight: 80kg
• Package: L/W/H：700mm*600mm*800mm Weight:100Kg

  Accessories
• CAM: Support Millbox, Hyperdent, and WorkNc
• Accessories: Center rod, center plate, vacuum tube, trachea adapter 6/8, 6mm tee X1, 8mm tee X1, pressure regulating filter valve, 1 set of milling burs, power cable, vacuum cleaner cable, wrench, user manual.
