Alternating current (AC) x-ray unit

9001M-EW	Murale / Wall Mounted

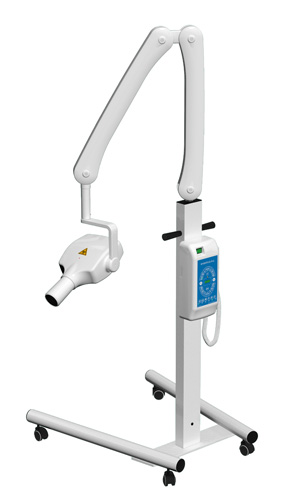

9001S-EX	Stativo / Mobile

Safe and easy to install. Simple control panel with LED buttonsand intuitive graphics. Two versions, the same utility: wall mounted (code 9001M) and mobile (code 9001S). Exposure parameters adjustment. Manual setting available, to increase or decrease the exposure parameters value according to your needs. You can modify the preprogrammed exposure parameters to match the specifications of your image receptor (film, intraoral sensor or phosphor plate), the type of tooth (incisor, premolar, molar) or the patient morphology (adult or child). Quality of details. Low dose setting for digital receptors. Automatic setting of exposure time. High heat capacity by combining an electric potential of 70 kVp and anodic current of 8 mA. Wide range of exposure times from 40ms to 2S. Easy to install and to operate. The Evostyle N.G. is the simplest and easy to operate x-ray dental unit produced by New Life Radiology S.r.l. to deliver high image quality. Solid arm to reduce any risk of tube head vibration during the image acquisition. Three lengths arm, 40 cm, 80 cm, 110 cm. Hand switch with 3 m coiled cord.

Technical data	Evostyle N.G.
Classification	Class I Electro-medical Apparatus with type-B part appllied
Head	Self-rectifying single-phase enbloc assembly. Tube: KL2 -0.8-70G Toshiba DG-073B-AC
Type	70 kV
Rated electrical power	0,430 kW
Supply voltage	230/240 v (50/60 Hz) single - phase
Absorption	6 A
Focal spot	0,8 mm (IEC 336)
Anode current	8 mA
Total filtration	2 mm Al eq.
Fokus-skin distance	20 cm
Ø of long cone at the end of spacer	<6 cm
Dispersed radiation	≤ 0,25 mGy/h a 1meter from focus 1
Selectable anodic current	4-7 mA
Selectable voltage to x-ray tube	60-70 kVp
Intermittent operation	1 s exposure: 30 s reset max
Control logic	Deadman
Maximum apparent resistance of mains power supply	0,46 Ω
Fuse	Very Fast Acting F 6.3 A H
Alluminium filter to be interposed between x-ray window and collimator cone	AL, 1 mm (AIP99,9 UNI3567)
Deadman logic control	wireless
