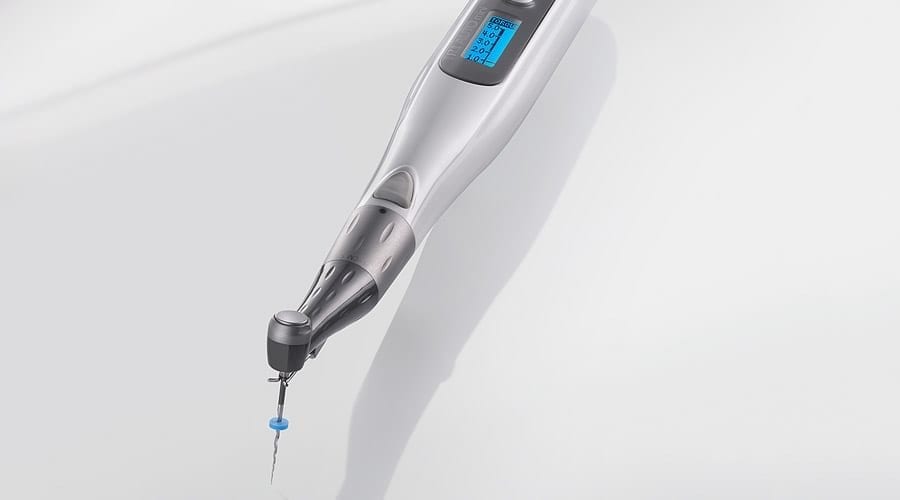

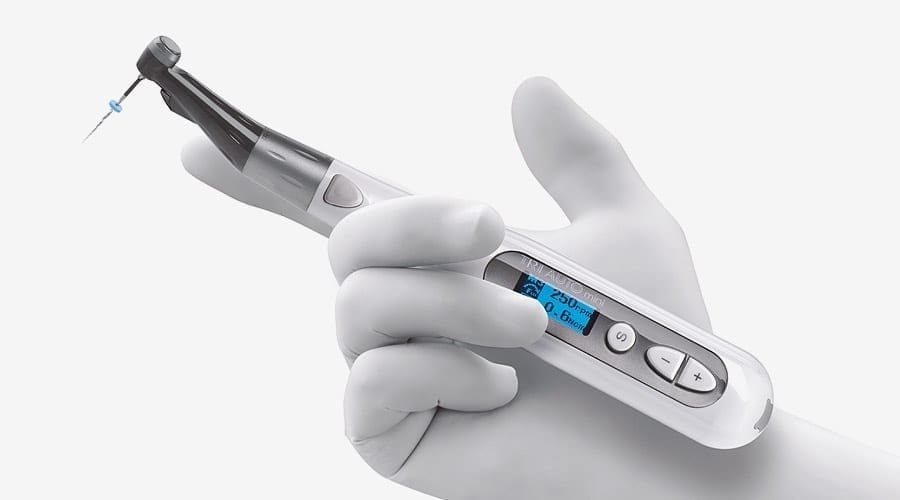

The TriAuto mini endodontic motor is, with its compact and well-engineered design, very small and very light. With this handpiece the dentist can work as subtly and sensitively as when using a manual file, while the device’s numerous automatic functions see to it that its files do not block or break.

The small head allows for easy access to posterior teeth with the ability to view both the canal openings and the pulpa floor during instrumentation.

• Small head for excellent visibility
• Automatic Controls and Settings
• Easy to read LCD display – also suitable for left-handed user
• Backlight color identifies current conditions
• Module System

Specifications


Product name

TriAuto mini

Model

TR-CM

Torque (N/cm)

4

Torque Reverse Settings (N/cm)

0.2, 0.4, 0.6, 0.8, 1.0, 1.5, 2.0, 2.5, 3.0

Speed Range (no load( (rpm)

50±5 - 1,000 ±100

Drive Mechanism

Electric Motor

Display Type

LCD

Cutting Tool Grip Type

Push Button Latch Type

Handpiece

Dimensions

Motor Handpiece: W 28 mm x H 27 mm x L 195 mm
Head: Diameter 9 mm x H 11 mm

Weight

100 g, including contra-angle and lithium batteries

Power Supply (battery)

3,7 V (lithium ion battery, rechargeable)

Electric Shock Protection Class

Internal power supply

Electric Shock Protection Degree

BF applied device

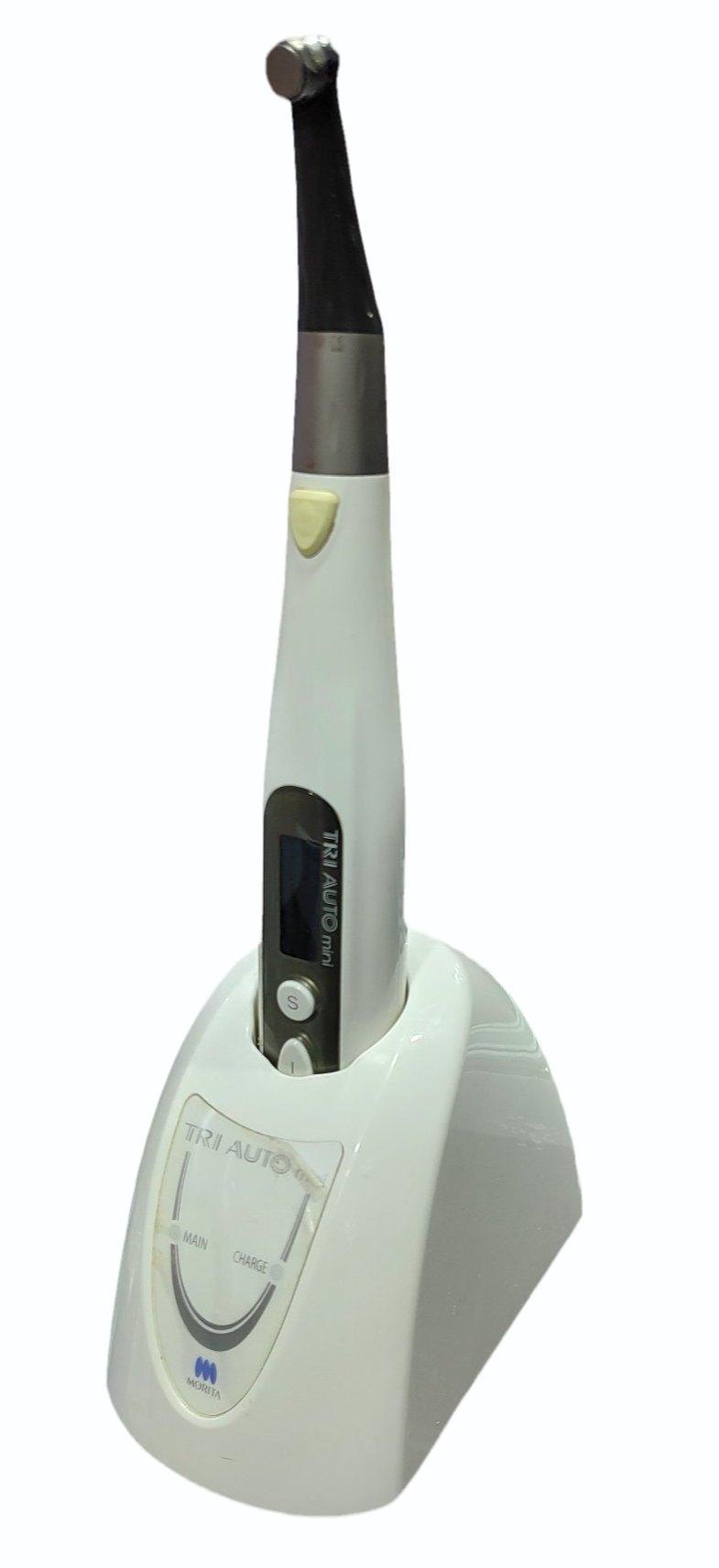

Charger

Dimensions

W 68 mm x D 108 mm x H 85 mm

Weight

350 g

Power Supply

AC 230 V

Frequency

50/60HZ

Power Consumption

5W

Electric Shock Protection Class

Class II

Electric Shock Protection Degree

-

Classification

Regulated Medical Device (Class II)
Special Maintenance Regulated Medical Device
