SMALLER SIZE, BUT WITH UNCHANGED EXCELLENT IMAGE
The compact hand-held design makes you free. Single hand operation. Without the shackle power cord.

Product Features

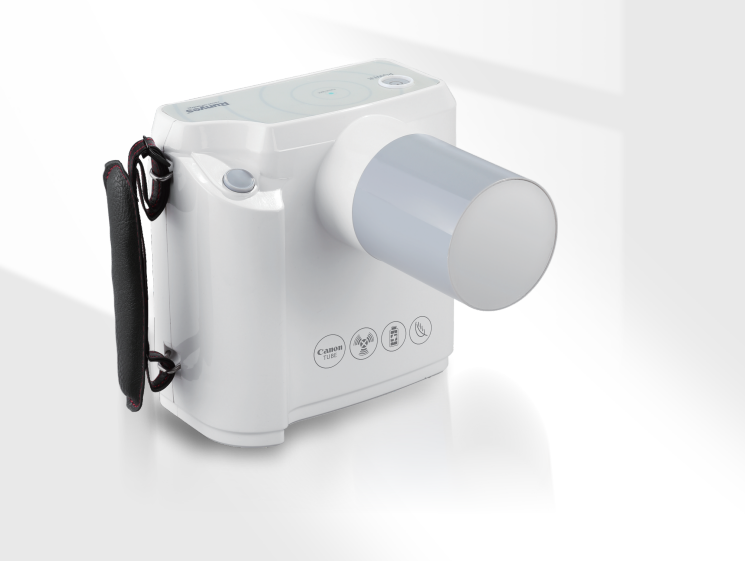

A true high frequency chairside X-ray machine, ensures less radiation for the patient & operator.
Compact & single handed operational device.
2mA tube current, combines higher performance and higher definition imaging. Adopt canon micro focus tube with focus 0.4mm. anode angle of 12.5°. Digitalised control machinery provides accuracy & stability. Wide digital display for easy operation.

Parameters Instruction
Model: RAY98 (P)
Tube Voltage: 70kV±10%

 Tube Current: 2mA±20%

Charge input Voltage: 100V-240V

Frequency: 50Hz-60Hz X-

Tube: CANON D-045

Anode Angle: 12.5
Focus: 0.4mm
Exposure Time Range: 0.04s -2.0s

Leak Emissivity: 1 meter 0.25mGy/h

 Machine Weight: 1.7kg

Relative Humidity: 30%RH-75%RH
