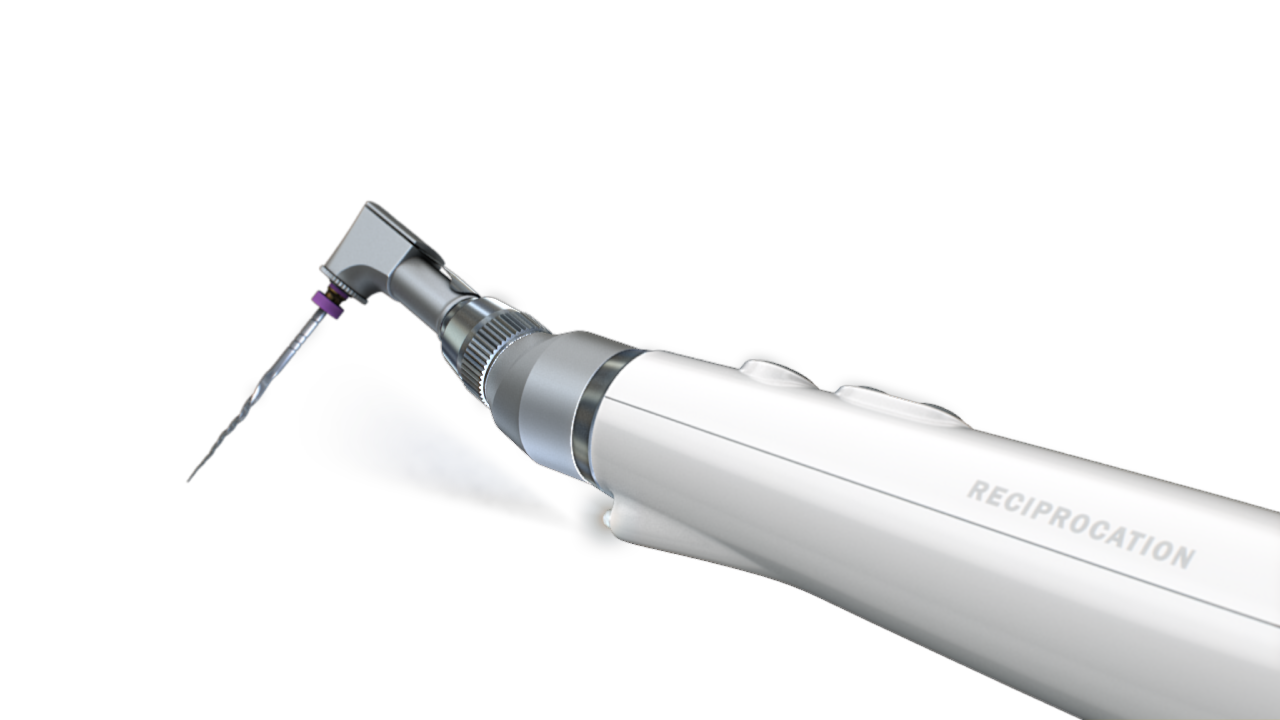

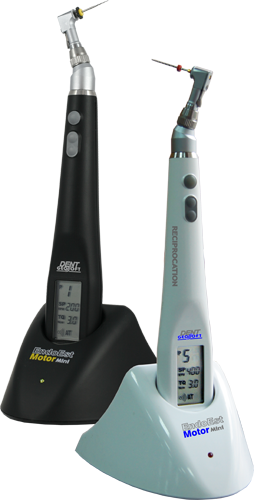

Cordless Endo Motor with Built-in Apex Locator

«ENDOEST MOTOR-MINI»

EndoEst Motor-Mini is a cordless, lightweight endo motor for simple and easy use in dayly endodontic practice. It is possible to apply it with most major Ni-Ti Rotary files brands.

It gives increased freedom of movement, ergonomics and user's simplicity. Safety features, such as Smart Torque Control and Integrated Apex Locator, make root canal treatment safe, particularly for beginners.

Available modifications and principal characteristics:

Key Features & Benefits:

1. Extensive range of continuous rotary and reciprocating NiTi file systems. In order to lighten dentist work, EndoEst Motor Mini allows to preset 5 different torque/speed programmes in its internal memory.

2. Built-in apex locator during root canal processing stops the file rotation and automatically starts Reverse movement when reaching the apex. Due to this function clinicians will be able to perform more accurate root canal preparation of apical zone.
3. Built-in Smart Torque Control ( «Autotwist» or «Autostop» when attaining the set torque) minimizes file fracture risk.

4. High-precision micromotor made by leading global manufacturer Faulhaber Company (Switzerland) guarantees high reliability of the device.

5. Quick-detachable miniature head with rotation capacity of 360º ensures maximum visibility and access to 'difficult' zones.

6. Lightweight ergonomic design, powerful Li-Po accumulator (allows to treat more than 30 patients + and makes work less tiring). Large LCD panel with all the chosen settings guarantees operator comfort.

7. «Soft start» optimizes mechanical processing and prolongs a file resource.

8. Enhanced visibility thanks to powerful white LED focused on the operational zone.

9. Possibility of connection of an external apex locator.

Specifications :

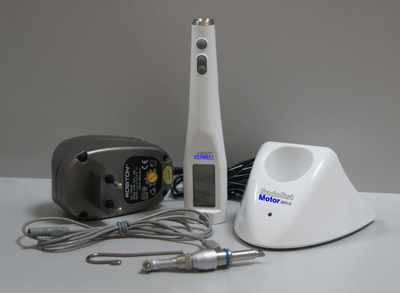

Control unit with head

• Power source — Li-Ро accumulator (3,7V; 700mA/h);
• Monochrome LED display — 16*32 mm;
• Micromotor head: model SCHD05-C-1M (miniature, with friction fixing), transmission ratio 1:1, file fixing — locking pattern;
• Range of the file rotation speed adjustment — from 200 to 600 rpm (by increment 50 rpm);
• Range of the file limit torque adjustment in the «continuous» rotation mode — from 0,2 to 3,5 Ncm (by increment 0,1 Ncm);
• Average operation time in the «continuous» rotation mode with new fully charged accumulator without recharging – 6 h;
• The device accumulator full charge period – 3±0.5 h;
• Overall dimensions — (196*32*23) ±3 mm, Weight -135±10 g;

Charger stand

• Electrical safety — class II, type В;
• Overall dimensions — (98*98*60) ±3 mm; Weight -175±10 g;
