- Panorama + Ceph

- Upgradable to Cone beam
-The ability to be upgrade to 3D by only adding CBCT Detector with software calibration
- 2 sensors

Advantages:



• Dedicated Sensor for each mode.
• 2 Sensors (Panoramic Sensor –Cephalometric Sensor)
• Automated sensor switching for each scanning mode.
• Auto-switching system positions the appropriate

sensor without manual intervention.

• The structure is optimized for safety, stability and durability.
• Balance and rigidity prevent position errors during scan Stability

reduces installation requirements.

• All axis motorized movement.



• Wheelchair access



• Easy to be upgraded to 3D by adding CBCT sensor and software calibration.

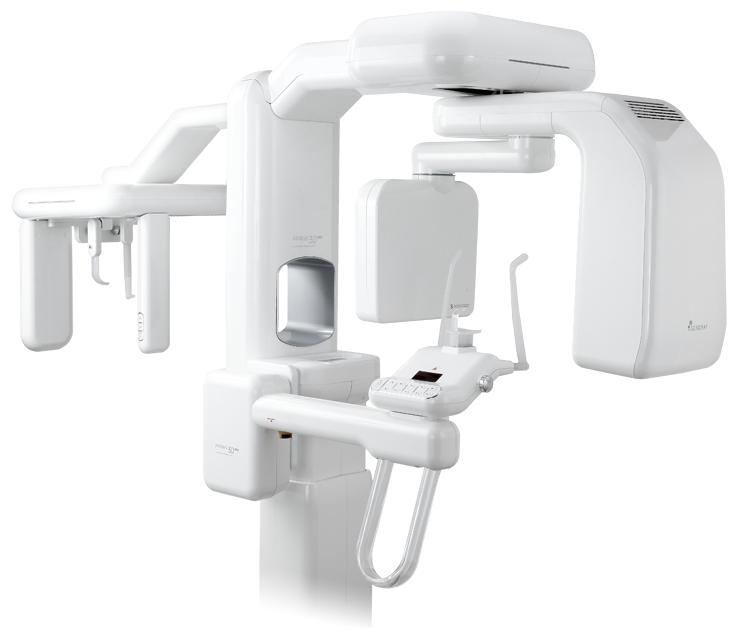

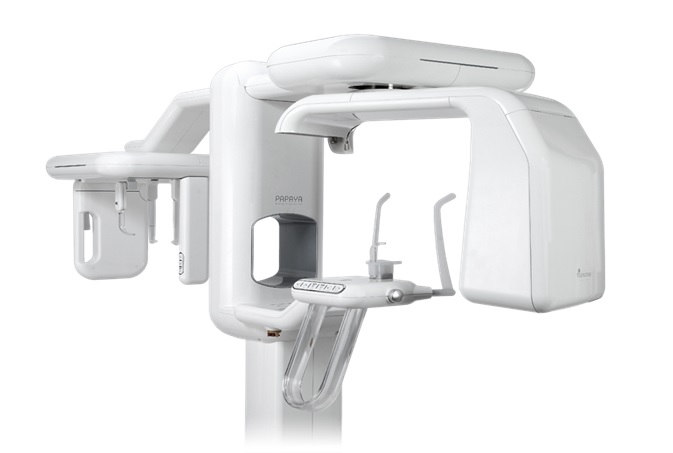

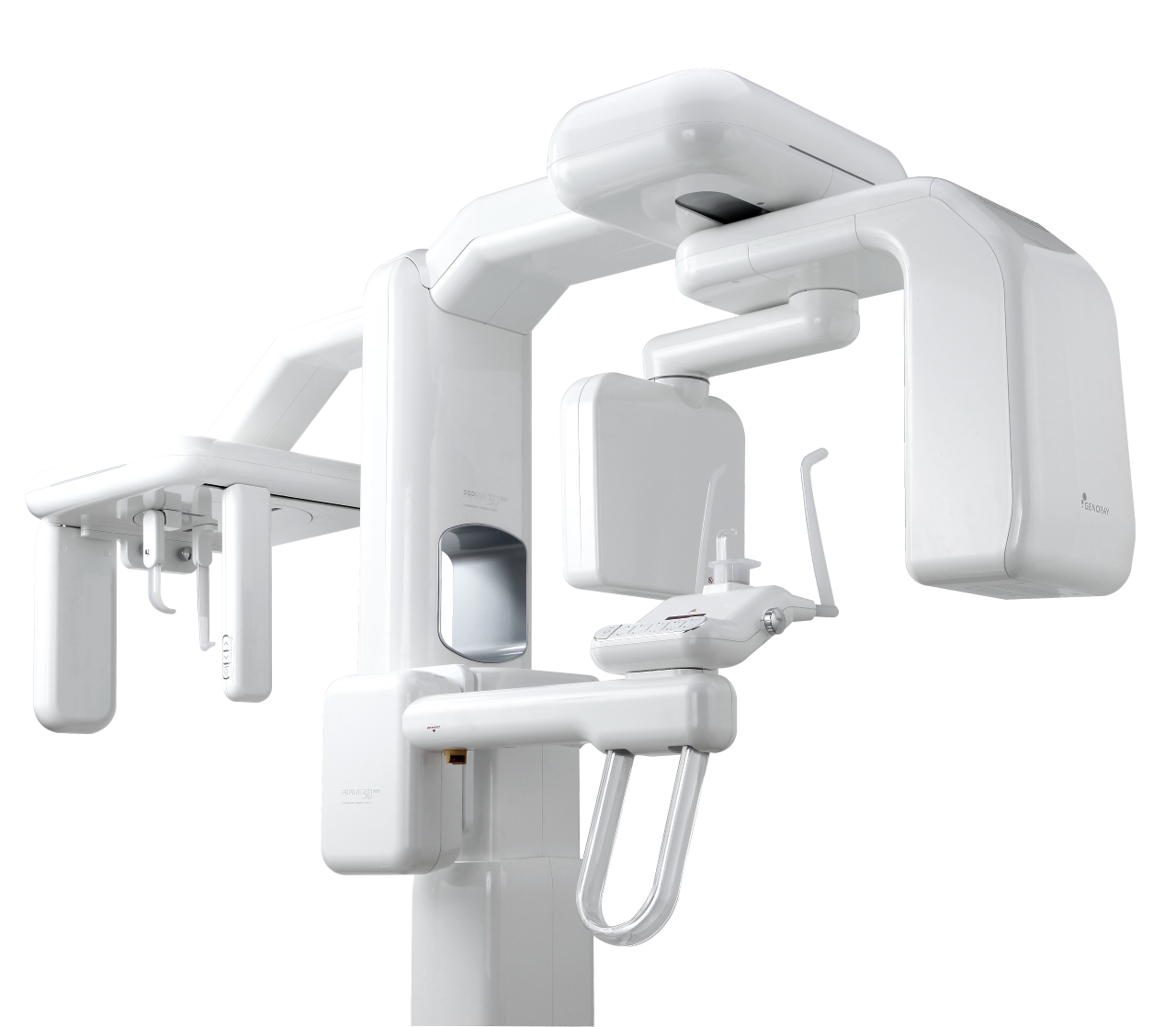

Discription (Papaya 2D Premium)

Exposer Time

Panorama

Cephalometric

9 ~ 17 Sec

4 ~ 12 sec

No. Of Sensors

2 Sensors ( Panoramic sensor & Cephalometric Sensor)

Panoramic Exposure Programs

Standard Panoramic - Orthogonal Panoramic - Sinus (PA / LAT) - TMJ (Open/Close) - Bitewing

Cephalometric Exposure Programs

Lateral - AP - Water's View - Submental Vertex

Focal Spot

0.5mm

Target Angle

5º

Tube Voltage

60 ~ 90kV

Tube Current

4~12 mA

Line Voltage

220V, 50/60Hz

Dimensions

1,887(W) x 1,131(D) x 2,383(H) mm

Weight

160 KG
