Ready for Every Diagnosis

Stellaris 3D covers a variety of diagnostics in 2D, 3D and Ceph with multiple fields of view, programs for panoramic examinations and cephalometric scans. Resolution selections available are ECO, Standard and HD to fit your specific needs.

Compact and Modern

The minimalist, elegant, space-saving design allows installation of Stellaris 3D in areas where conventional devices would not fit.

Power of Touch

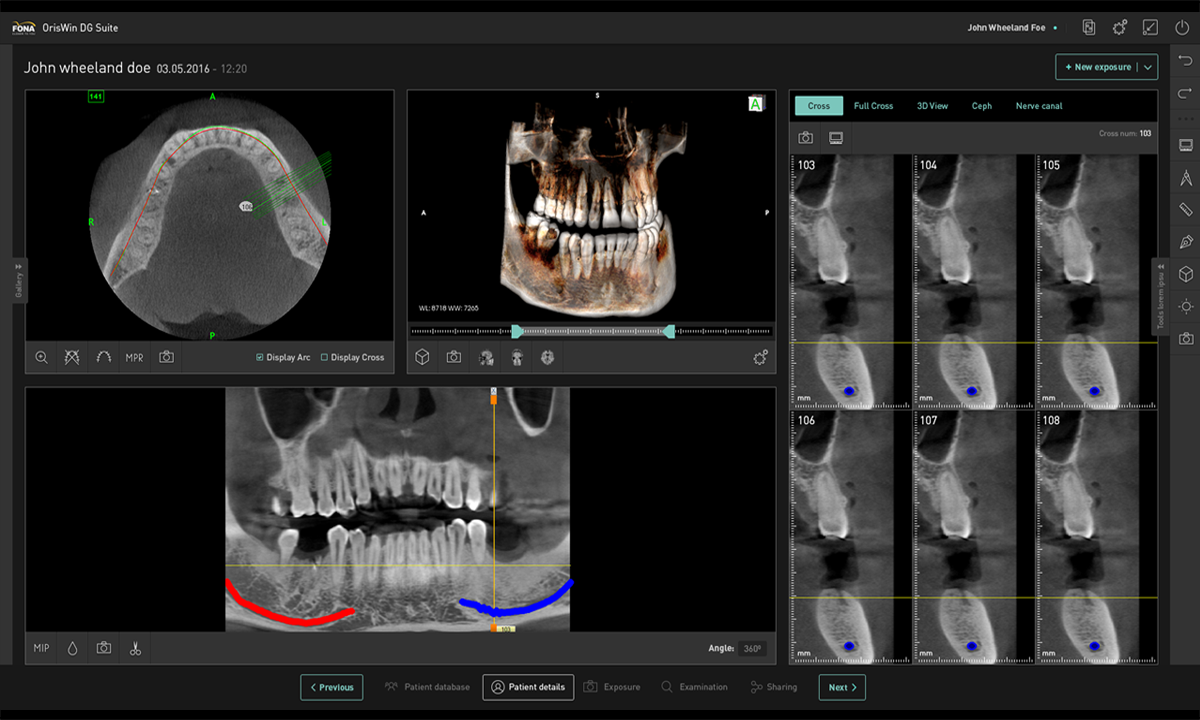

Control of the system is available from your PC screen as well as on the unit’s touchscreen, allowing straightforward program selection with hints for correct positioning.

8 different FOV’s for Your Daily Needs

Stellaris 3D covers a complete range of CBCT programs for various applications – from endodontics through surgery and implantology to bone augmentations. The quality of tissue resolution allows to also use it for periodontal disease and orthodontic applications, e.g. supernumerary teeth. Small volumes start at 5x6.5cm for endodontics and go up to 10x10cm for surgical and orthodontic applications.

HighDefinition and ECO Programs

Adult and, more importantly, child programs are crucial for ECO low dose examinations, allowing high diagnostic image quality for both overview and demanding diagnostic tasks.

Ambient Glow

Ambient lighting creates a comfortable atmosphere for the patient and allows to monitor the unit status from a distance.

Advanced Technology

Latest sensor design, technology and unit robotics have been used to achieve high precision level of detail and smooth, quiet operation. The machine allows for repeated exposures without having to wait.

Panoramic BiteWing

Time efficient preventive scan or perfect alternative for patients that do not tolerate intraoral BiteWings.

Cephalometric Programs

Stellaris 3D delivers One-Shot cephalometric images with focus on clarity of tracing points of hard- and soft-tissue anatomical structures. Dense areas where tracing points are hard to distinguish are clearly visible. The image is calibrated and ready for cephalometric tracing.

Upgradeable

The unit is upgradeable with a one-shot technology cephalometric arm when you need it.

TECHNICAL SPECIFICATIONS

Sensor Technology	CMOS Flat Panel, CSI Flat Panel for ceph
Pixel size	100 µm
Voxel Size	80 µm
Focal Spot	0.5 (IEC 336 / 1997)
Tube Voltage	60 - 86 kV
Tube Current	2.5 - 10 mA
Exposure time 2D	4.6 - 14.2 seconds
Exposure time 3D	5 - 16.9 seconds
Exposure Time Ceph One-Shot	0.2 - 4 seconds
3D Active Sensor Area	150x150 mm
Ceph Image Size	240x300 mm
Volume size 3D	5x6, 7x6, 6x10, 8x6, 8x10, 10x6, 10x10
Weight	109kg without ceph, 137kg with ceph
Panoramic Programs	in total 9: adult pano, child pano, dentition, BW, TMJ, sinuses, half dentition left, half dentition right, anterior teeth.
3D Programs	in total 23: adult full, child full, adult and child upper and lower jaw, adult and child sinuses, surgical and implant volume front, left and right, hemi-arc left and right, upper and lower, ENDO volume in 6 different positions, TMJ right and left.
Ceph Programs	LL 30x24, LL18x24, AP, PA, Carpus
Patient Sizes	Child, teenager, woman, man
Software	Stellaris PRO
Features	3 in 1 or 2 in 1 upgradeable to 3 in 1
Footprint	140x110 cm without CEPH, 240 x 110cm with CEPH
Patient position	Standing or sitting
Wheelchair acessible	Yes
