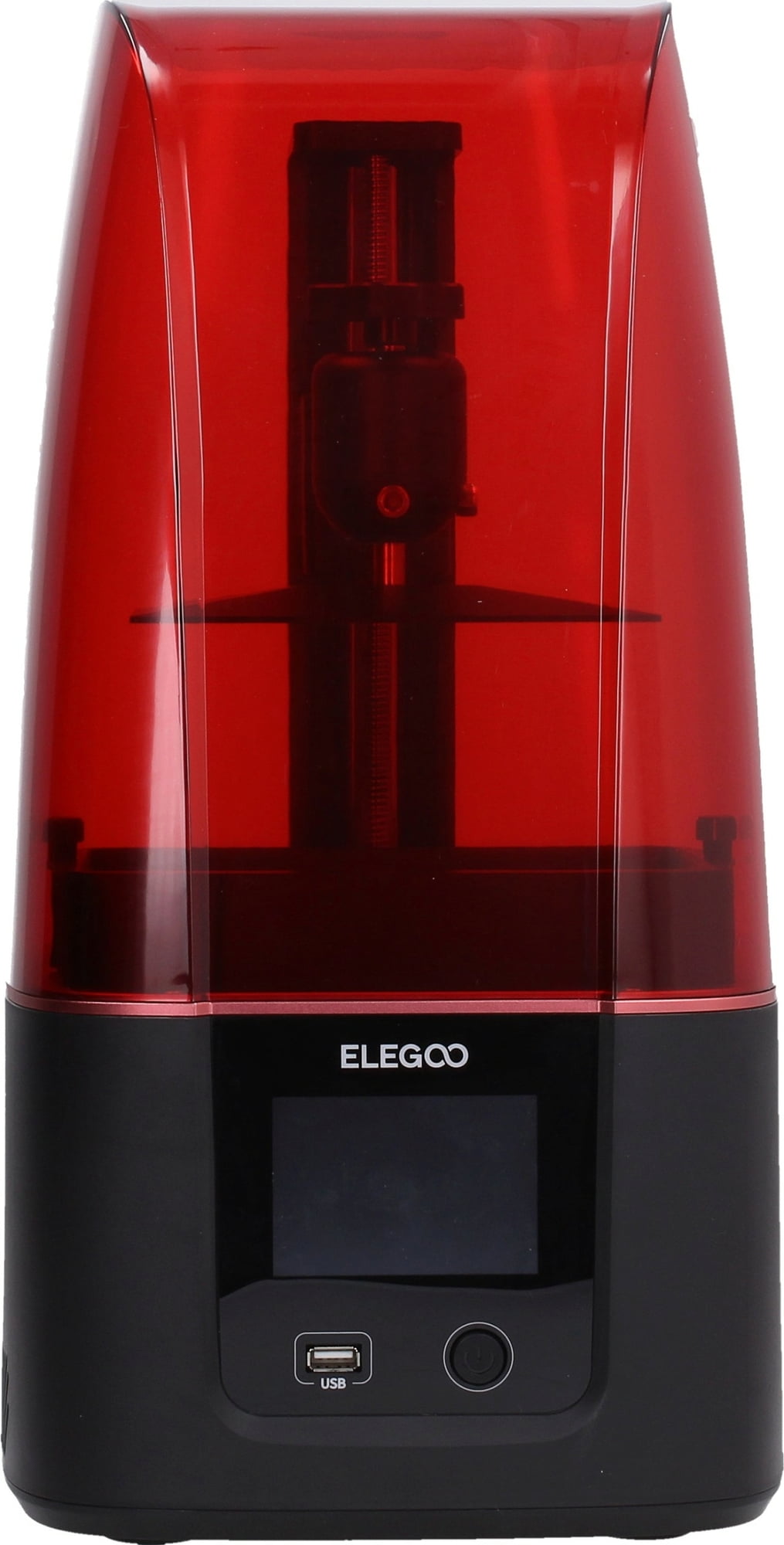

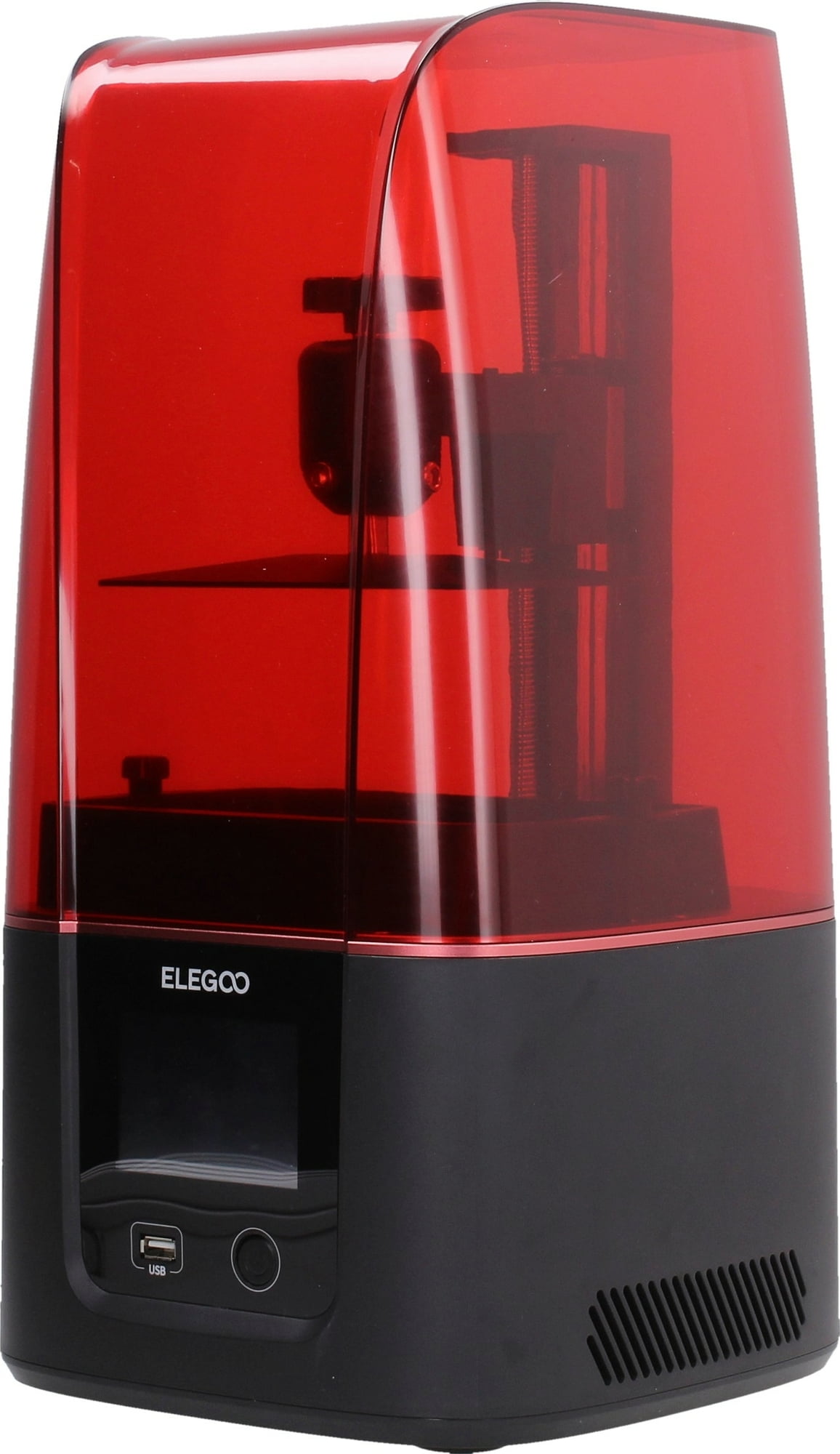

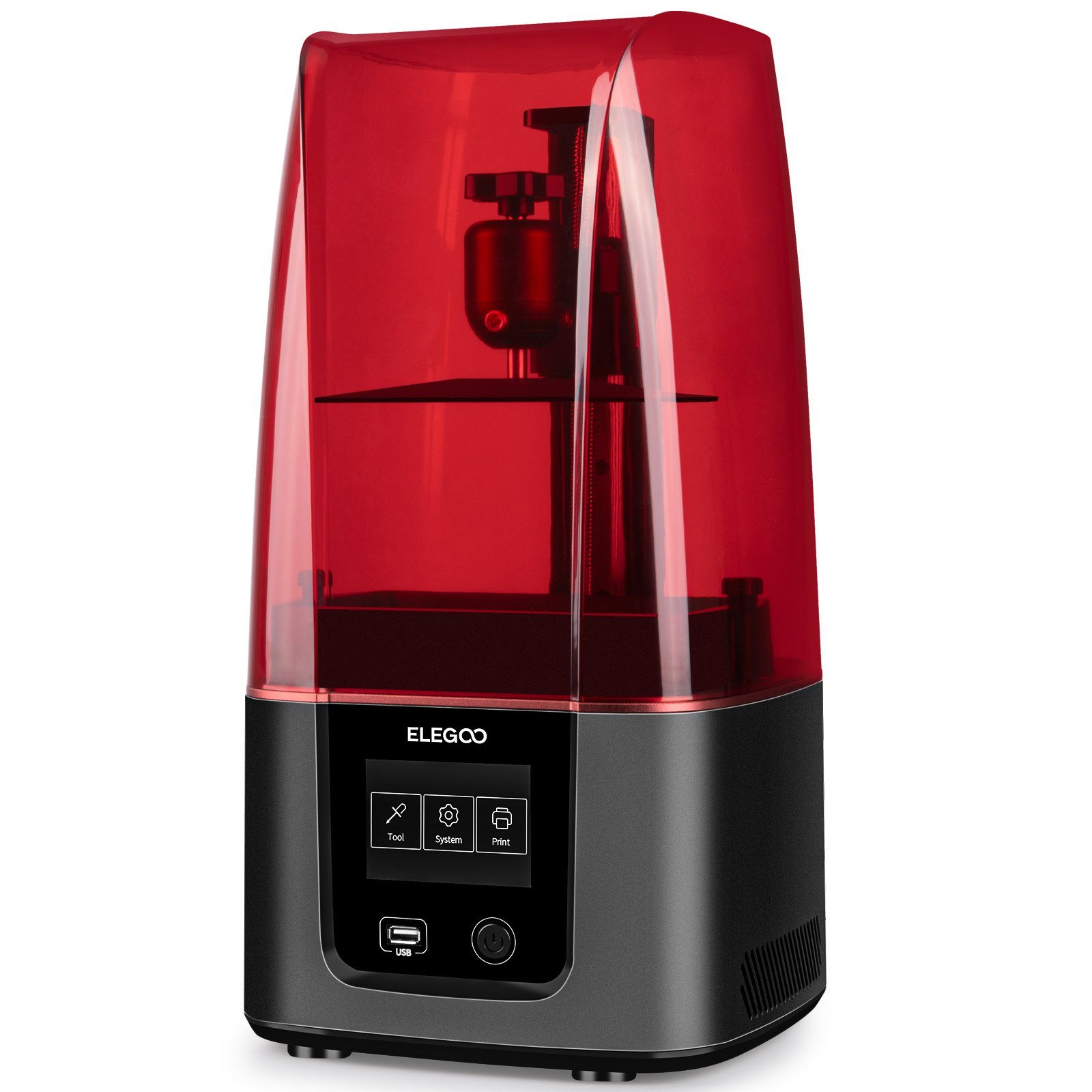

ELEGOO MARS 3 ULTRA 4K MONO LCD 3D PRINTER

0

Select Seller

The Elegoo Mars 3 4K Monochrome LDC Printer has a new screen with 4098 x 2560 pixels and 4K resolution, making it the first 4K printer in the Mars series.

Elegoo also promises 30% more printing accuracy than its predecessor, Mars 2.

Large Print Volume

At 143 x 89.6 x 175 mm, the Elegoo Mars 3 offers a significantly larger printing capacity than its predecessors and other monochrome 4K re-printers.

New Light Source and Improved Heat Sink System

A new, powerful COB light source has been stowed under the monochrome screen. To counteract unwanted heat generation, the Mars 3 has a new and improved heat sink system that keeps the inside of the printer at an optimal temperature and contributes to the general longevity of the printer.

The heat sink system also works with 50% higher heat dissipation efficiency than conventional heat sinks.

Improved FEP Film 2.0

Further developed FEP foils contribute significantly to improving the printing results.

Solid Linear Rail

A robust linear rail ensures smooth and quiet printing.

Sandblasted Building Board

Models stick firmly to the new, sandblasted build plate of the Mars 3 and do not fall off easily.

Free CHITUBOX Pro Slicer

The Elegoo Mars 3 includes a 1-year license of CHITUBOX Pro Slicer software worth approximately $170 annually.

  • 【Excellent Industrial Design】

Exquisite Appearance, industrial-grade design, panel integration offers convenient and neat steps.

  • 【Excellent Printing Accuracy】

Provides 30% improvement compared to the 2K screen of Mars 2. The finished print looks much closer to the model itself.

  • 【Small Footprint but Large Printing Size】Mars 3 has a large printing volume of 89.6mm*143.36mm*175mm.


  • 【Powerful COB Light Source】XY resolution: 0.035(4098*2560px); The heat sink system works 50% higher heat dissipation efficiency than ordinary sink.


  • 【Solid Linear Rail and Sandblasted Build Plate】Works smoothly and silently; Model sticks firmly and not easy to fall off.


  • 【Chitubox Pro Slicer】Comes with the Chitubox Pro Slicing Software for FREE one year, no need to pay for it within the period.
  • We provide a 1-year warranty on the whole printer (4K LCD, FEP film, and tool kit excluded). Replacement parts will be shipped from the overseas warehouse to offer you quality and fast customer service.

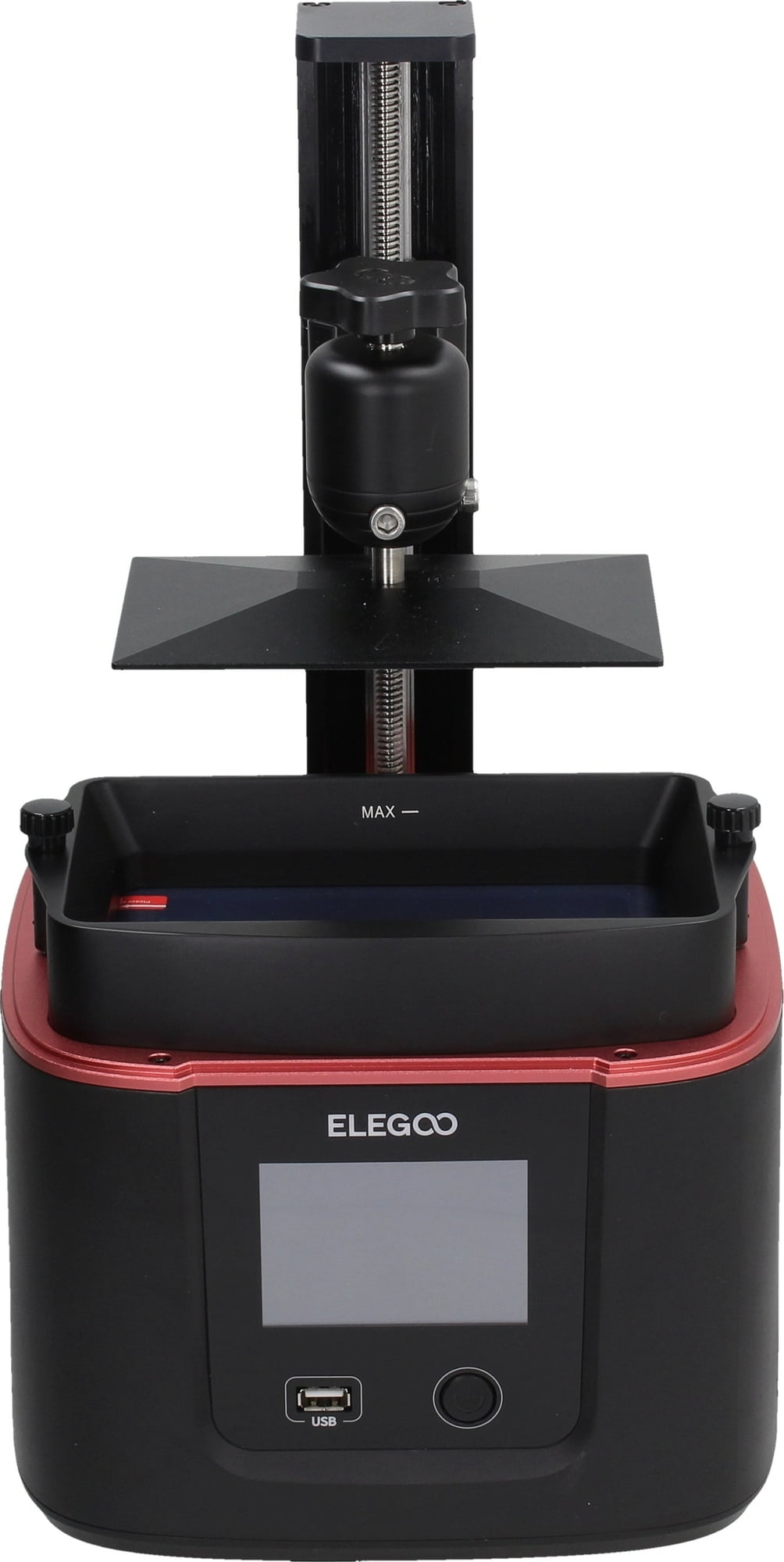

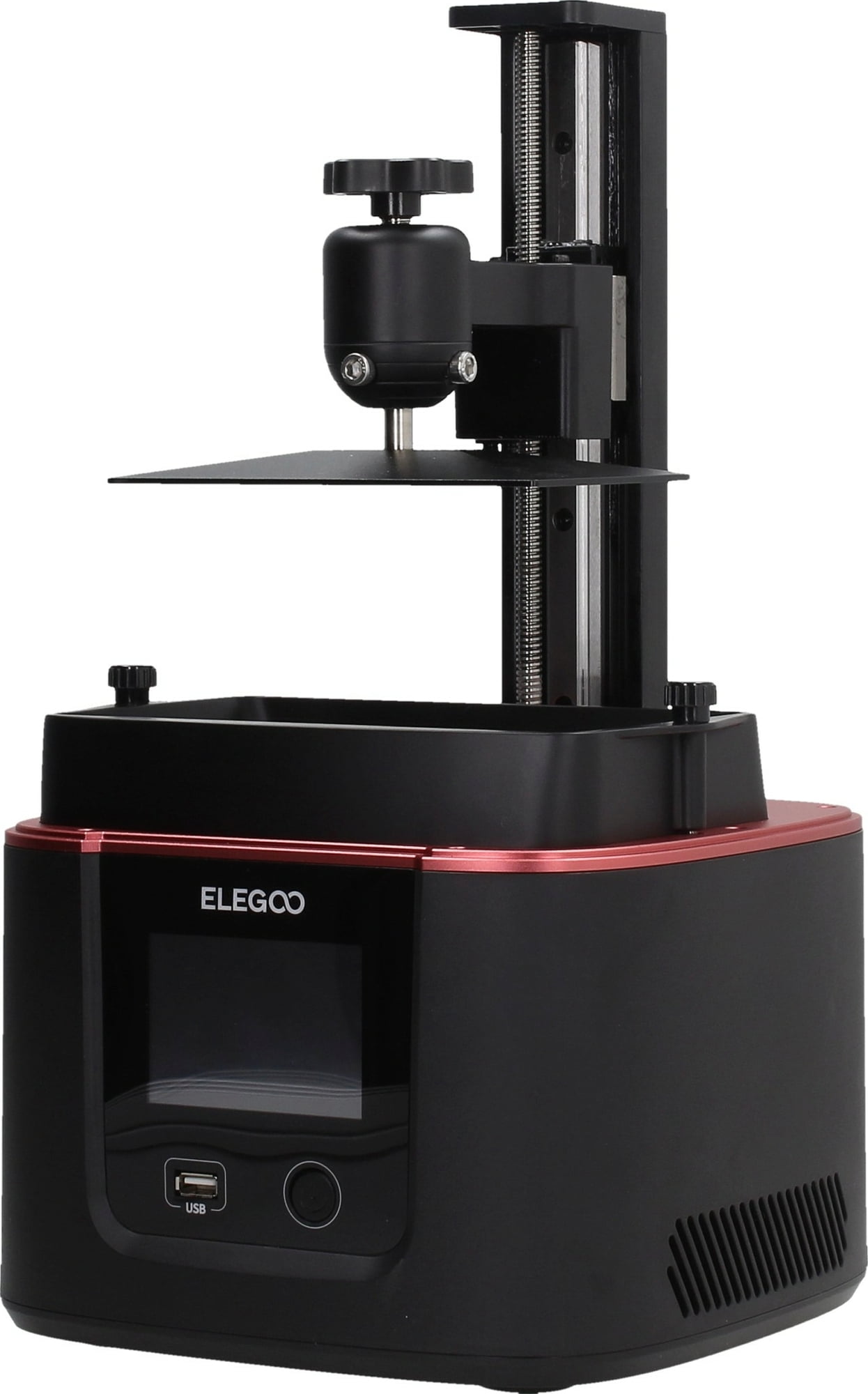

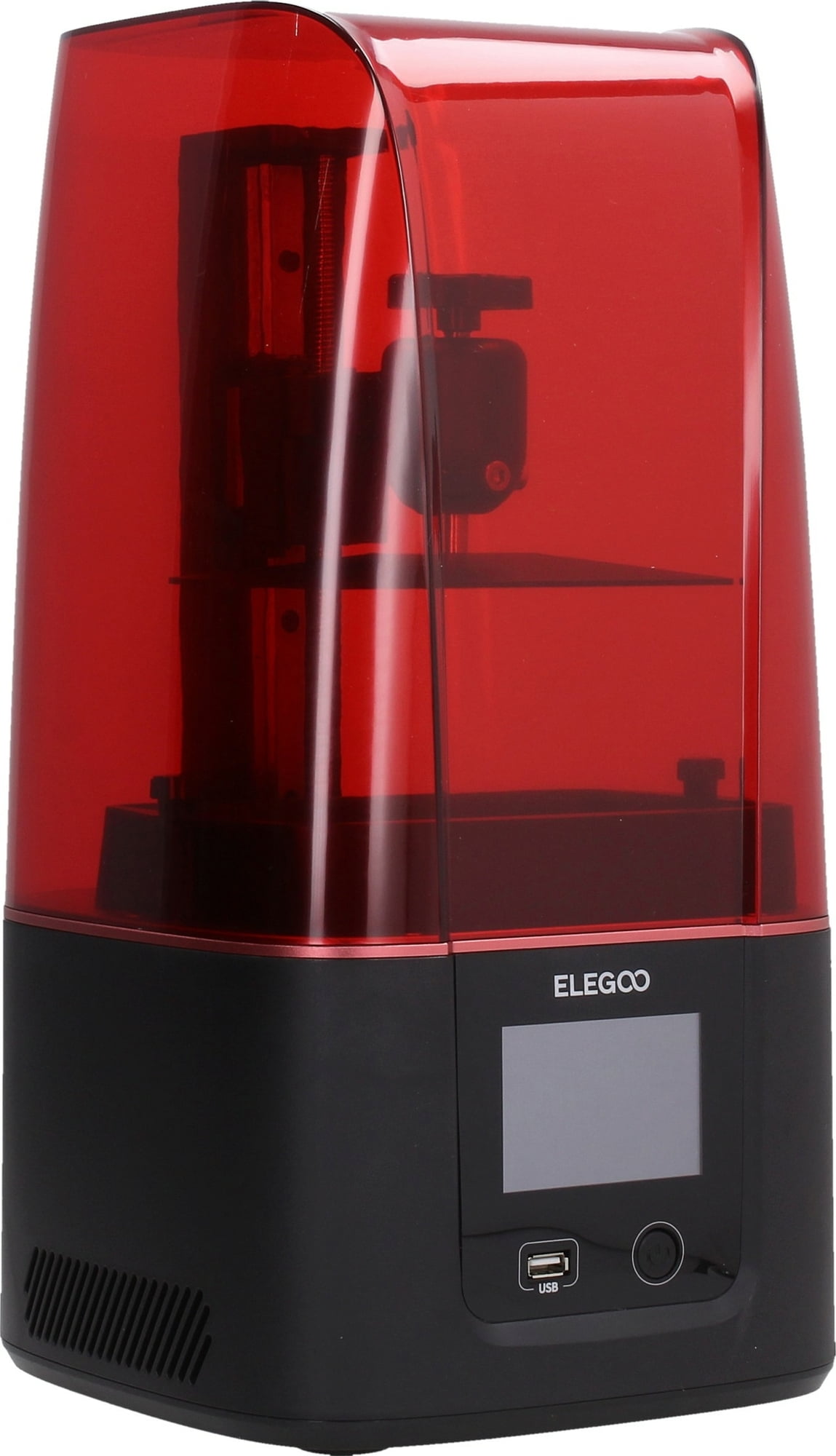

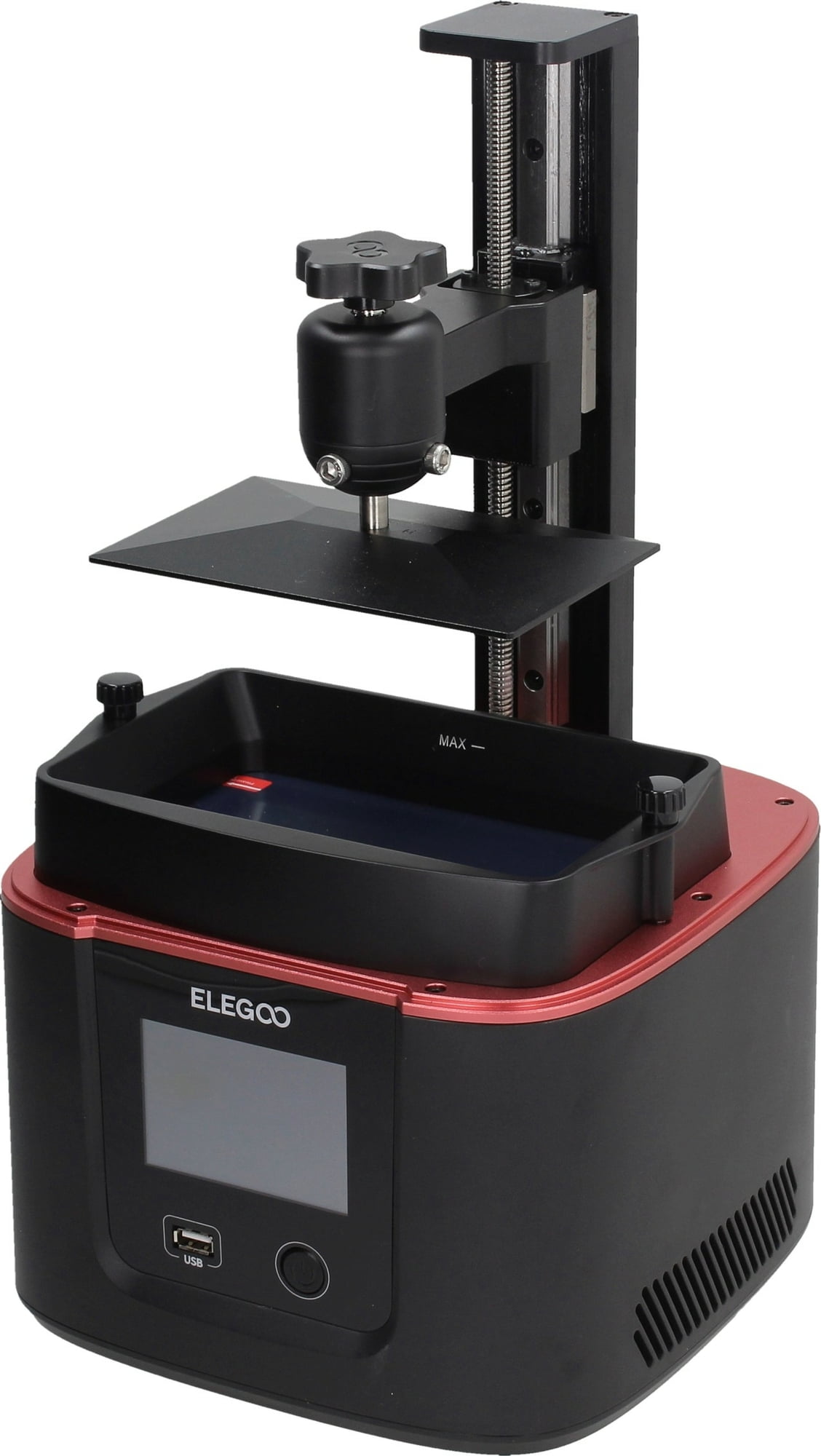

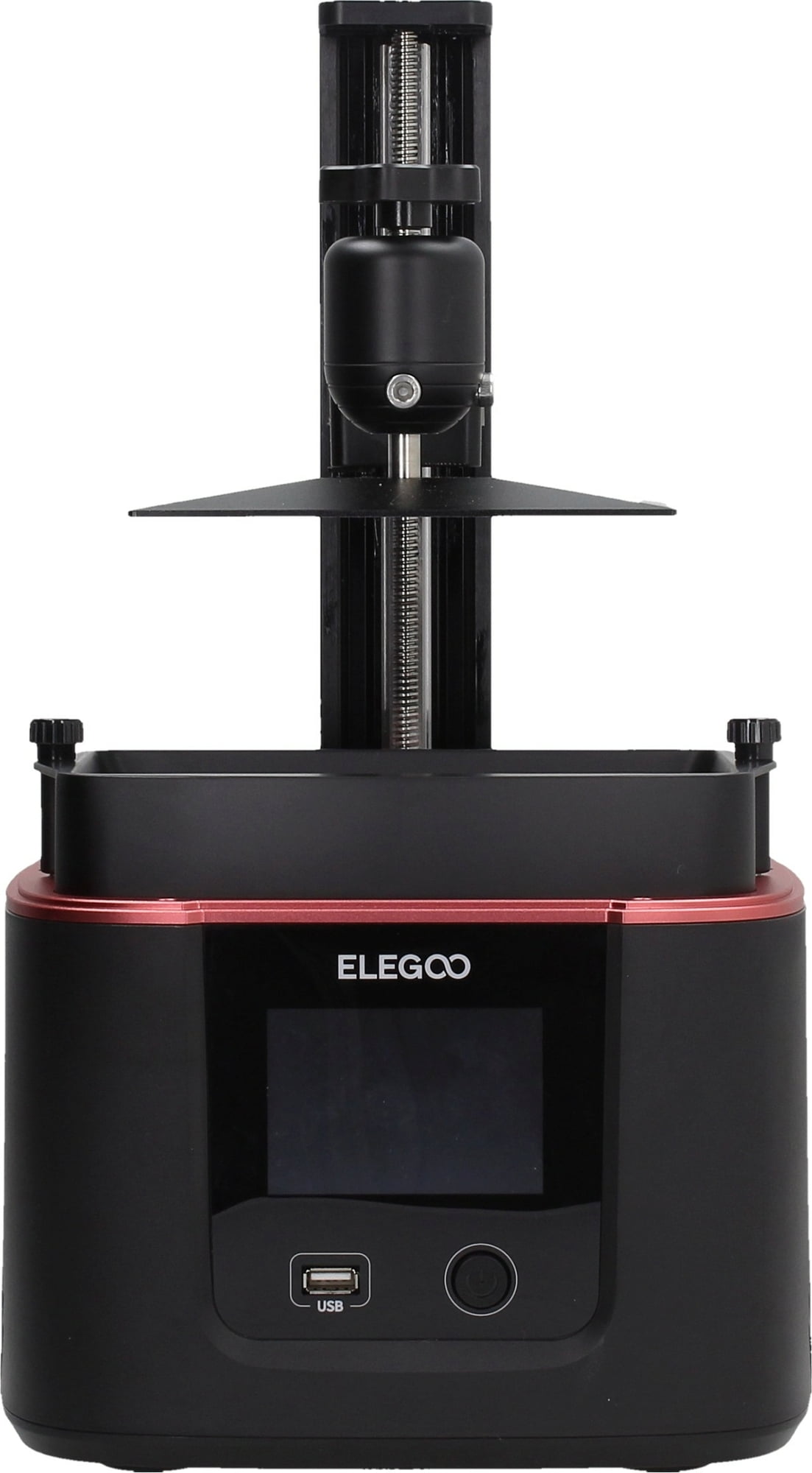

ELEGOO MARS 3 ULTRA 4K MONO LCD RESIN 3D PRINTER

ELEGOO Mars 3 Resin 3D Printer

Mars 3 is ELEGOO’s first ultra-4k high-precision, compacted-size desktop LCD resin 3D printer.

It uses a 6.6-inch ultra-4K high-resolution monochrome LCD, an upgraded COB UV light source structure, and a new release film 2.0 for printing.

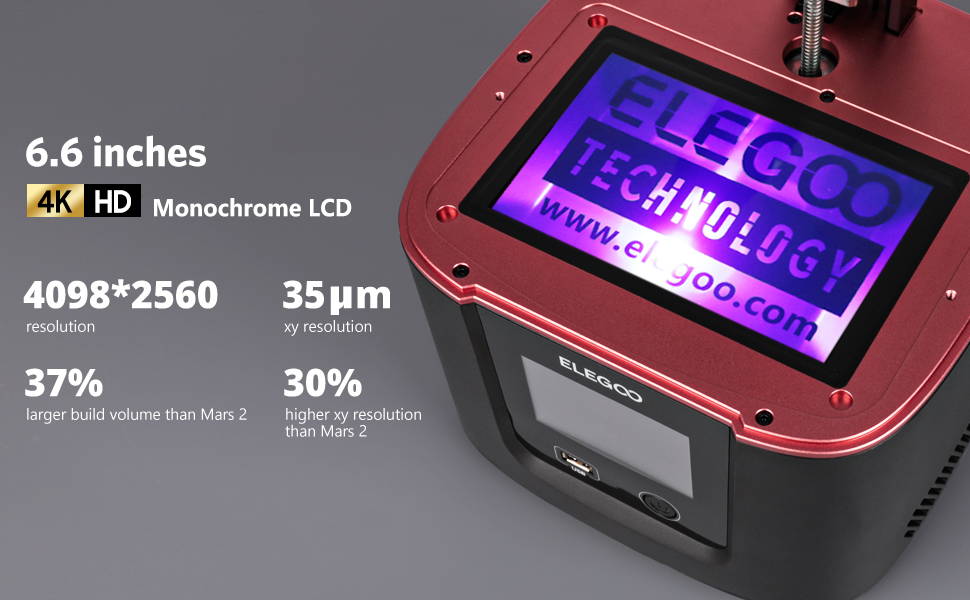

Ultra 4K monochrome LCD

The ELEGOO Mars 3 Resin 3D printer is equipped with an Ultra 4K 6.6-inch monochrome LCD with a resolution of 4098*2560.

Compared with ordinary 2K LCD 3D printers, its printing volume is 37% higher than Mars 2, XY accuracy is up to 35 microns, 30% higher than Mars 2 series, higher printing efficiency, more stable performance, and less maintenance.

Upgrade the light source structure

36 highly integrated LED lights with a newly designed free-form surface lens, the light uniformity exceeds 90%, bringing more precise printing dimensional accuracy.

Release film 2.0

The lower release tension protects the small supports from being broken, the completeness of the printed model details is greatly improved, and the printing rate is greatly improved.

Heat dissipation structure

It is the first time to adopt a copper tube heat dissipation structure in ELEGOO resin 3D printer, which greatly optimizes the heat dissipation performance and reduces light decay.

With 6000 hours of continuous printing, the light decay is less than 5%, which extends the lifespan of the 3D printer.

Chitubox Pro 1 year experience

A one-year free trial of Chitibubox Pro slicer is included, which is worth 169 USD.

From the automatic support algorithm to the upgrade of the model repair tool, Chitubox Pro helps better output the model and allows you to realize the unlimited potential of 3D printing.

Product information & technical details

Item no.:ELG-140009104
Manufacturer No.:EL-140009104
Manufacturers:Elegoo
Content:1 pc
Product types:3D Printers
Assembly:Fully assembled
Printing Technology:UV LCD
Printer Display:Touch Display
Supported operating systems:Windows (7+), Mac OS X (10.7+)
Interfaces:USB - Connection
Supported Formats (Slicer):STL, OBJ
Building platform :143 x 89.6 x 175 mm
