Dabi’s portable dental X-ray equipment ensures clearer, quality radiographs.

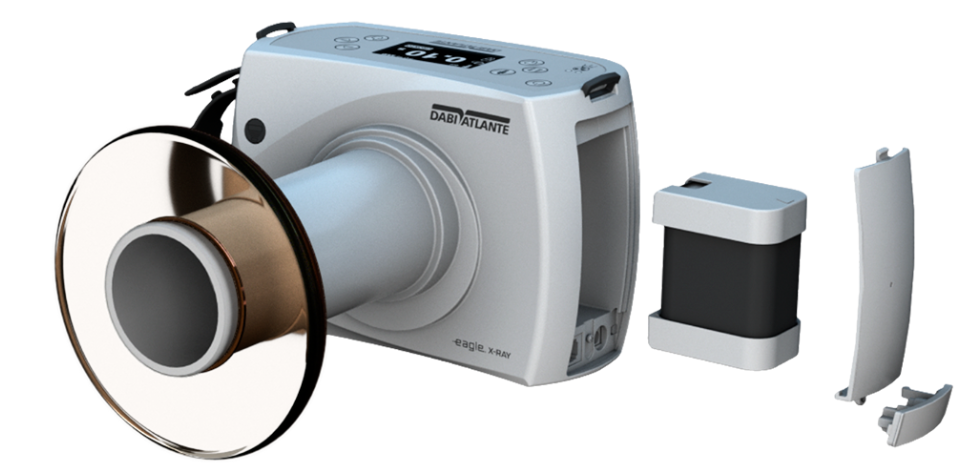

Ealge X Ray is intended for intraoral radiography of the patient’s dentition for diagnostic purposes. It is an X-ray unit for dental use, with a nominal voltage of 60kVp, tube current of 2.5 mA and a focal point of 0.7×0.7mm.

With Eagle X Ray, equipment leakage radiation is minimized by a radiopaque material collimator, avoiding unnecessary user exposure and directing radiation to the exam target.

Mobility

A product made to bring efficiency and sophistication everywhere



Light and Compact

Its lightness facilitates handling, bringing practicality that increases day-to-day productivity.



Perfect in execution

Prepared for use in intraoral sensor phosphor plate and radiographic film

Target angle

16°

Ampoule current

2,5 mA

Heating and Cooling Curve

See head cooling characteristics chart

Focus-skin distance

200 mm

Focus-receiver distance

220 mm

Reference Axis

At the center of the positioning cone

Maximum Energy Accumulated in 1h

150 mAs.

Irradiation Time Selectable Range

0.01 to 1 second (With steps of 0.01s)

Work factor

1 : 60

Permanent Filtration

Glass: > 1.0 mm Al eq. @ 60kVp Plastic: > 0.05 mm Al eq. @ 60kVp Aluminum filter: > 1.0 mm Al @ 60kVp

Total Filtration

> 2,05 mm Al eq. @ 60kVp

Model

LBP6S1PAXR

Nature of Radiation

Undulating

Weight

2.4 kg

Focal point

0,7 x 0,7 mm

Maximum Output Power

150 W (60kV x 2,5mA)

Leakage Radiation

< 0,2 mGy/h @ 60kV, 2.5 mA

Operating Temperature

Loaded: 0° to 40°C Unloaded: -20° to 75°C

Ampoule Voltage

60kV

Charging voltage

24 V

Shear Voltage

16,5 V

Maximum Operating Voltage (Intensity)

60 kVp

Rated voltage

21,6V – 2.50Ah

Type

Li-ion rechargeable

Generator type

Constant Power High Frequency Generator

Type of Radiation

X-ray
