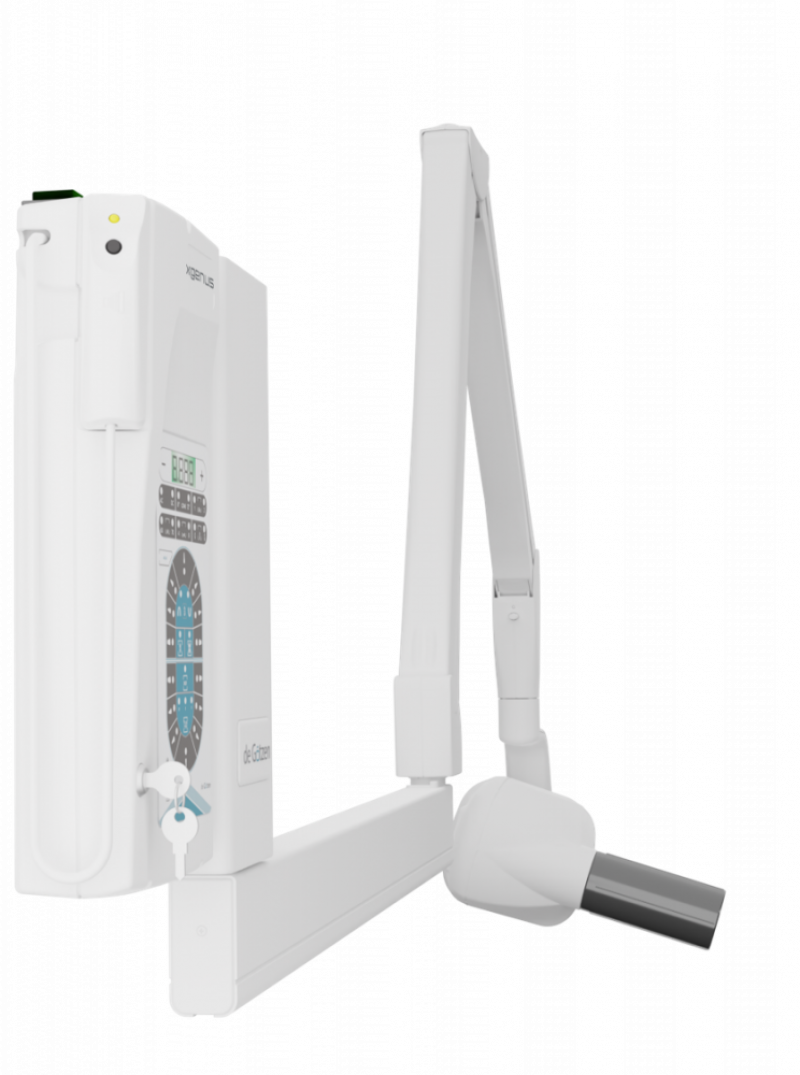

xgenus®: the present and the future of the dental radiology. Certified Unit

the future of the intra-oral radiology has already started today with the xgenus® x-ray system. - an exceptional machine technologically thrown ahead, nice designed, ergonomically perfect. - in this machine the advanced ac (alternated current) technology finds its ideal application in such a structure that enhances at top: safety, functional capacity and flexibility. Smaller in comparison to the previous one, xgenus® has been designed as a no-limits machine. - thanks to the so-called de Götzen® patented "open system" it will be possible to buy one system but with the chance to connect an additional tubehead and pantograph arm with ac technology or dc technology. - a true operating revolution that will give quality perfect x-rays.

Mani Feature:

properly protected against radiation leakage (according to IEC standard: less than 0,25 mGy/h at 1m, the real value is less than 0,1 mGy/h at 1 m)

the high kV (70kV) and the accurate mA, produce an electron beam focused into a small focal spot (0,7mm): this provides a gray scale suitable to improve the reading of the radiography

12-inch (31cm) standard focus-skin distance that helps to maximize the use of the parallel technique. - with the short cone (optional) the distance is reduced to 8-inch (20cm)

the xgenus® timer is a new design studied to satisfy the most recent hardware and software standards

it is easy to read and very fast to set up.

the exposure time charts are arranged for film speed types "D", "E", "F" and for the most part of digital imaging systems.

visual and audible signals indicate that the x-ray exposure has been made

it has the possibility to connect the red warning light (xgenus® light) outside the X-ray room

it has the possibility to connect the exposure control button (with safety key) of the timer outside the-ray room (xgenus® exposure control button)

the automatic self-test assures proper operation of all electronic functions (error codes immediately indicate any faults)

the safety key is another way to prevent improper use of the unit when the system is switched off.

it displays the line voltage and collect the operating data during the use (important feature for the system in ac)

the pantograph arm assures smooth, accurate and firm control. It can be adjusted for 40cm, 80cm (standard), 110cm extender arms as well as for unit, ceiling and mobile

the installation of the system is easy and very fast
