Technical Data:

• Adapter：AC100~240V，DC5V/1.5A，50/60Hz
• Curing mode:
• Wavelength: 380~520nm;
• Curing time: 10s, 20s;
• Curing depth: 8mm;
• Curing range: 10mm;
• Light power:≥1100mw/cm²



Detection mode:

• Wavelength: 380~420nm
• Light intensity: 40~280mw/cm

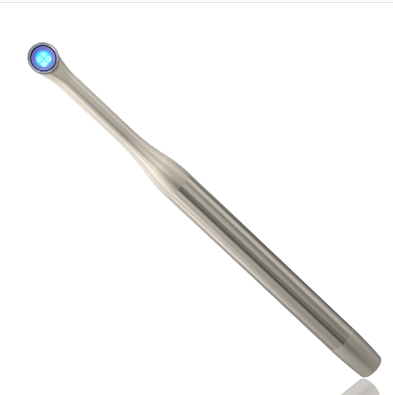

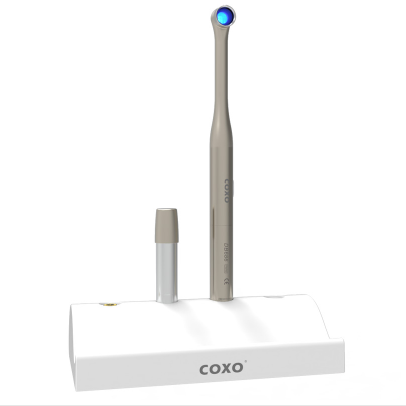

DB686 Nano

●The full metal body;

●Small and exquisite, only 13.5mm outside diameter;

●Indicator light and control key, two in one;

●Head can rotate 360°;

●4 wick, wide spectrum:380-520mm, suitable for most of UV curing resins;

●Independent caries detection LED light core, leaving no place for caries to hide;

●Built-in high sensitive LED metering system;

●10mm wide curing range;

●8mm curing depth；

●Two batteries as standard, a fully charged battery can be used 200 times(10s curing mode)
