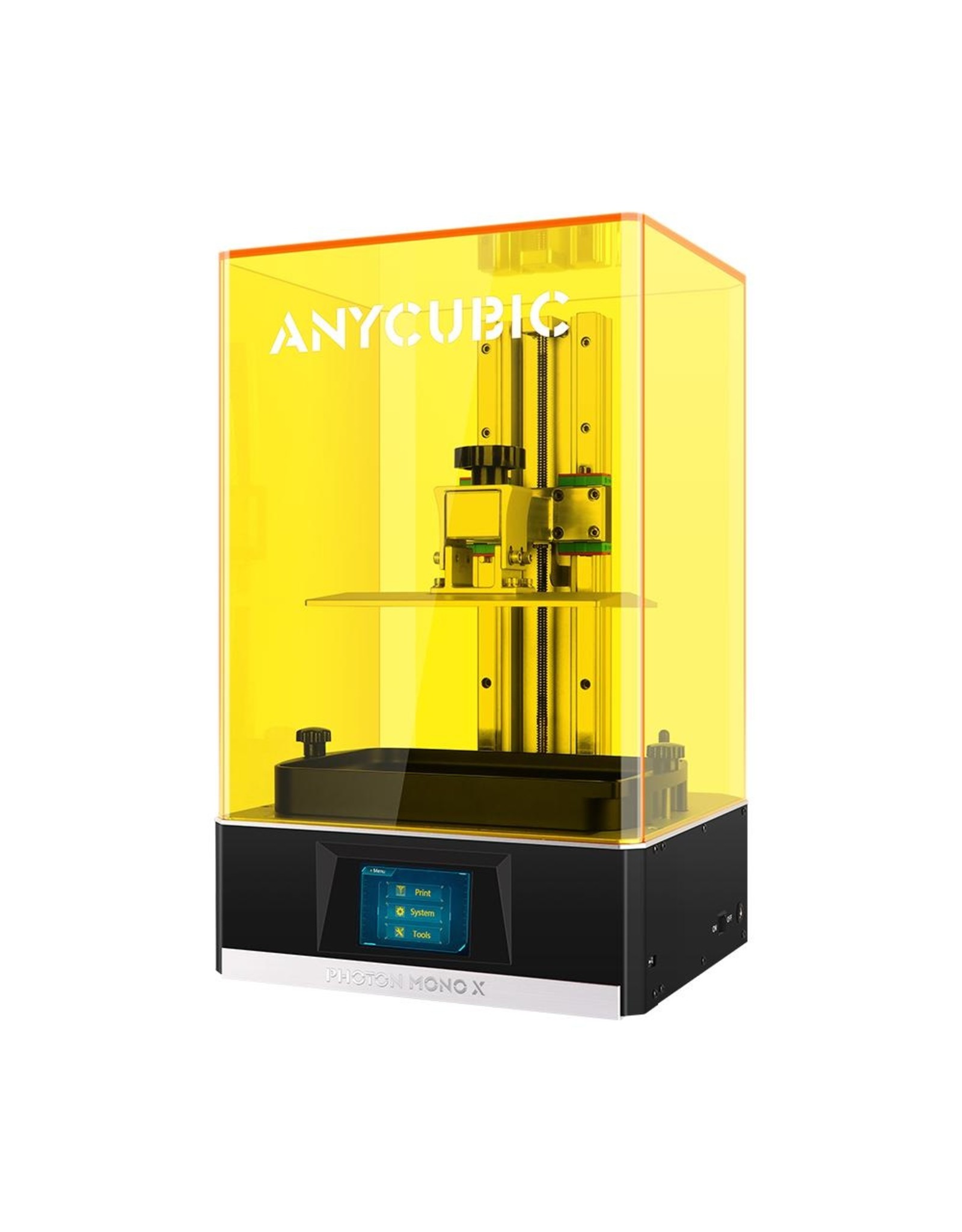

Anycubic Photon Mono X

0

Select Seller

4K monochrome LCD

The Anycubic Photon Mono X is one of the first 8.9 inch LCD printers to have a newly developed 4K monochrome LCD display. With this new technology, the Photon Mono X prints at unbelievable printing speeds so that it only needs 1-2 seconds per layer - compared to conventional LCD 3D printers with 7-8 seconds per layer.

The monochrome LCD is also thermally stable and has a much longer service life than conventional LCD displays. You can print up to over 2000 hours with it!

Despite the large installation space, the Anycubic Photon Mono X has a very high precision of up to 50 microns, which is achieved thanks to the high 4K resolution. In combination with anti-aliasing, you can create large and very detailed works of art.

New matrix light source

The new matrix light source has been redesigned and consists of several UV LED lights that have a more even exposure. This not only improves accuracy but also enables faster exposure times and better heat dissipation.

Anycubic App Remote Control

The Photon Mono X has a WiFi module, so you have much more convenient connectivity than conventional 3D printers. You can also connect your Photon Mono X using the Anycubic app, where you can monitor your printing process or adjust the print settings.

Dual linear rail

With the enlarged building platform, increased stability is also a very important addition. Following the trend of its smaller LCD counterparts, the Photon Mono X has two linear rails on its vertical axis to ensure that the build platform remains level throughout the printing process.

Own slicing software

The self-developed slicer software from Anycubic is far more superior in speed and operation compared to various other slicer freeware. The software also supports anti-aliasing for nicer printouts.

UV cooling system

An integrated cooling system for the UV exposure unit to increase printing performance and service life.

Other features:

  • Qualitative power supply
  • Automatic shut down when opening the top cover
  • 3.5-inch touchscreen
  • Details down to 50 microns
  • Wifi module
  • Stable Z-axis
  • Structured platform for better adhesion
  • Marking in the metal resin tank for max. Capacity

Technical Specifications

  • System : ANYCUBIC Photon Mono X
  • Operation : 3.5 inch Touch Screen
  • Software : ANYCUBIC Photon workshop
  • Connectivity : USB
  • Technology: LCD-based SLA
  • Light-source: high-quality filament(wavelength 405nm)
  • XY Res.: 0.050mm 3840*2400(4K)
  • Z Axis Res.: 0.01mm
  • Layer Res.: 0.01-0.15mm
  • Printing Speed: MAX 60mm/h
  • Rated Power: 120W
  • Printer Size : 270mm(L)*290mm(W)*475mm(H)
  • Build Volume: 192mm(L)*120mm(W)*245mm(H)
  • Material: 405nm UV Resin
  • Net Weight: ~10.75kg
