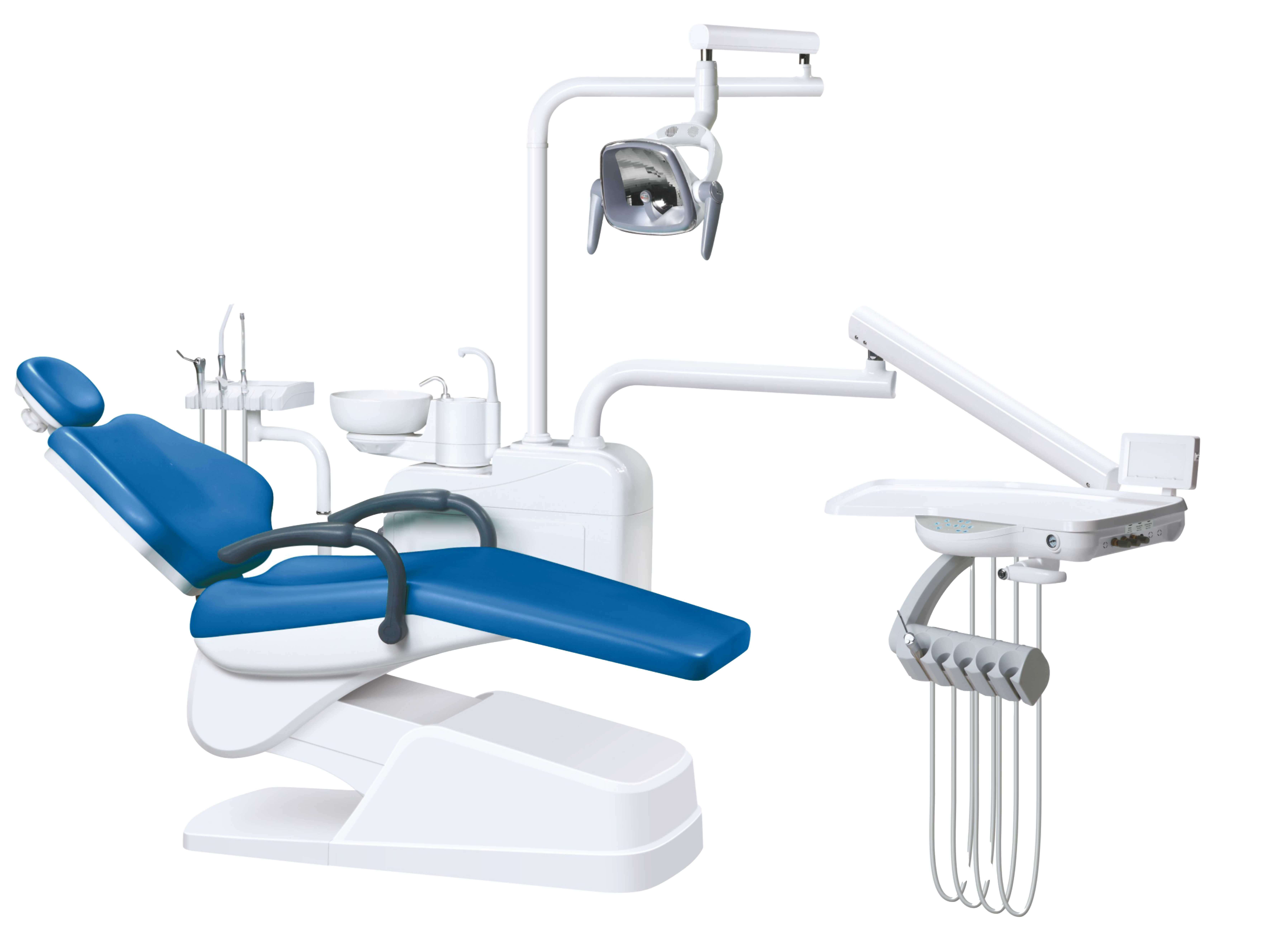

AY-A1000

AY-A1000 is designed to be simple and convenient, with a full range of features, including reflective LED oral lamp, rotating ceramic spittoon, adjustable headrest, multifunctional accessory box and so on.

The design of the seat is based on the shape of the human body to provide the patient with a sense of comfort and support.

Net weight: 180kg

Gross weight: 225kg

Package size: 135*100*117cm

Total bearing capacity: 135kg

Instrument tool load: 1.5kg

Rated voltage: AC 220V50Hz

Power: 1200VA

Air pressure: 0.5MPa-0.8Mpa

Water pressure: 0.2-0.4MPa

Chair height range: 450-750mm

Backrest tilt angle range: 100°-175°

Service life: 15 years
