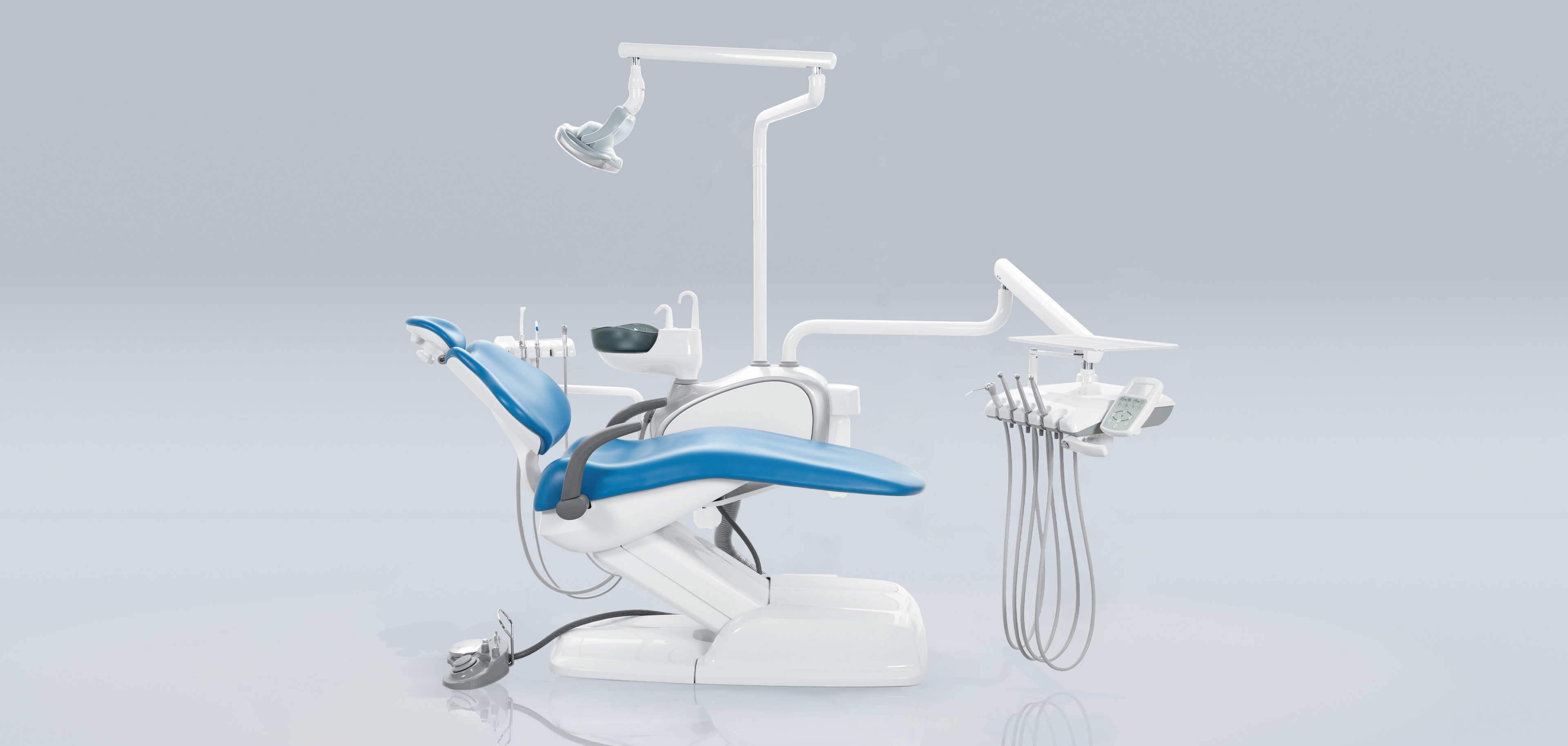

High-end Modern Dental Chair

• Chair-instrument mutual lock system
• Built-in X-ray viewer
• 3 Air turbine hose
• 1 three way syringe
• Junction Box

Water/Air/Electricity master switch control system

Built-in junction box with air/water filters and regulators

Power box with main control box

You can also compare our AJ16 electrical dental chair to choose the one that suits you best.

Delivery System

International/Continental

With anti-backflow system

Chair-Instrument Mutual Lock System

Built-in X-ray viewer

3 Air turbine hose

1 three-way syringe

Dental stool

D2 dental stool with 4 functions

Assistant unit

Suction delay off system

10 function control panel

Double joint assistant stents

1 HVE and 1 SE with adjustable switch

1 three way syringe

With assistant tray

Foot pedal

11 function foot control

Side box

Cast aluminum water unit frame with swivel side box

24V water heater

Detachable and rotatable glass cuspidor

Solenoid valve system

1500 ml water purification system

1300 ml Disinfectant system

Imported hydrolytic resistance pipeline

Dental Light

Dual Mode Amber LED light

Characteristic Of AJ15 Dental Unit:

Excellent Infection Control

• Handpiece anti-flow system: Effectively prevent the cross-infection in the pipe caused by the back flow of handpiece, and avoid cross-infection between patients.




• Suction delay off system: 5 seconds delay off to ensure suction pipelines is completely emptied.




• Two water bottle: More convenient to disinfect the pipeline of the whole machine, reduce the cross infection in the pipeline and keep the equipment clean.

Quality Guaranteed

• High quality metal backrest: The backrest is made of 2.5mm high quality steel plate and molded by one-time stamping, extremely rigid.




• Casting bent plate: Precision die-casting aluminum alloy, solid and reliable.




• Smart emergency stop button: Flat head internal groove button design, effectively prevent the wrong touch.

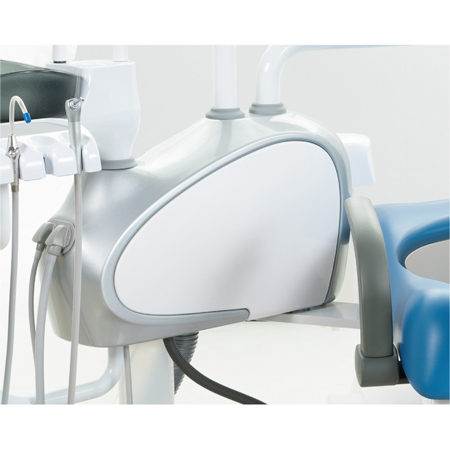

• Stable& Rotatable water unit: Water unit are fixed in the center of the patient chair, compared with the traditional side connection, it’s more stable，The water unit can be rotated outwards to facilitate the assistant to operate the machine during treatment, easy to maintain.

Efficient Four-hand Operation

• Assistant control: The control panel with ten function buttons is convenient for assistant to use the normal functions of the device




• Multifunction foot switch: The foot switch can control patient chair lifting, backrest height, headpiece working state, headpiece water, blowing, and spittoon water supply, greatly improving the working efficiency of doctors.




• Adjustable metal handle: The handle is made of aluminum alloy, which is light in weight and durable. The flow switch on the handle can adjust the flow.

Wellbeing For The Dentists

• Close to patients freely: The curve design on the backrest enables the assistant get close to the treatment area.




• Wide space for waist: The height difference between the edge of the backrest and the center is up to 8cm, and the edge thickness of the cushion is only 2.5cm, which remains wide space for legs of the doctors and assistants and allows the medical team to get as close to the patient as possible.

Wellbeing For The Patients

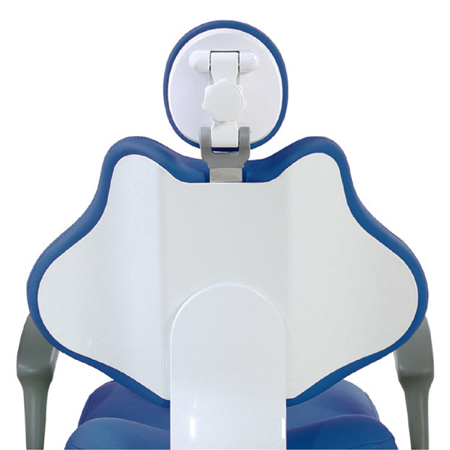

• Comfortable headrest: Compared with traditional flat headrest, cambered headrest holds the head and prevents it from moving from side to side. The underside of the headrest is raised to provide support for the back of the neck.




• Comfortable Upholstery: The curved lines of the U-shaped backrest perfectly fit the patient, ensure every place of the back is supported. The height of the backrest can be adjusted by 20mm, suitable for patients in different regions.




• Ultralow chair height: The lowest chair height is only 350mm, makes it easy for children or the old to climb up and down.
