Specifications:

Maximum height	89.88" | 2283mm
Weight without pedestal	231 lbs | 105 kg
Weight with pedestal	342 lbs | 155 kg
Height adjustment range	27.56" | 700mm
Dimensions including rotation (WxDxH)	38.97" x 44.88" to 45.67" x 89.88" | 990mm x 1140mm to 1160mm x 22.83mm
Installation	Wall Mount (Pedestal Optional)
Mains voltage	200-240 VAC
Frequency	50/60 Hz
Rated power	2.2 kVA
Magnification factor	1.3
Tube voltage and current	60-99 kV, 4-16 mA
Focal spot size	0.5 mm (IEC60336)
Total filtration	2.8 mm AL
Model	CsI Sensor
Pixel Size	100 µm
Active sensor surface	6 x 150.4mm
Frame Rate	300 fps

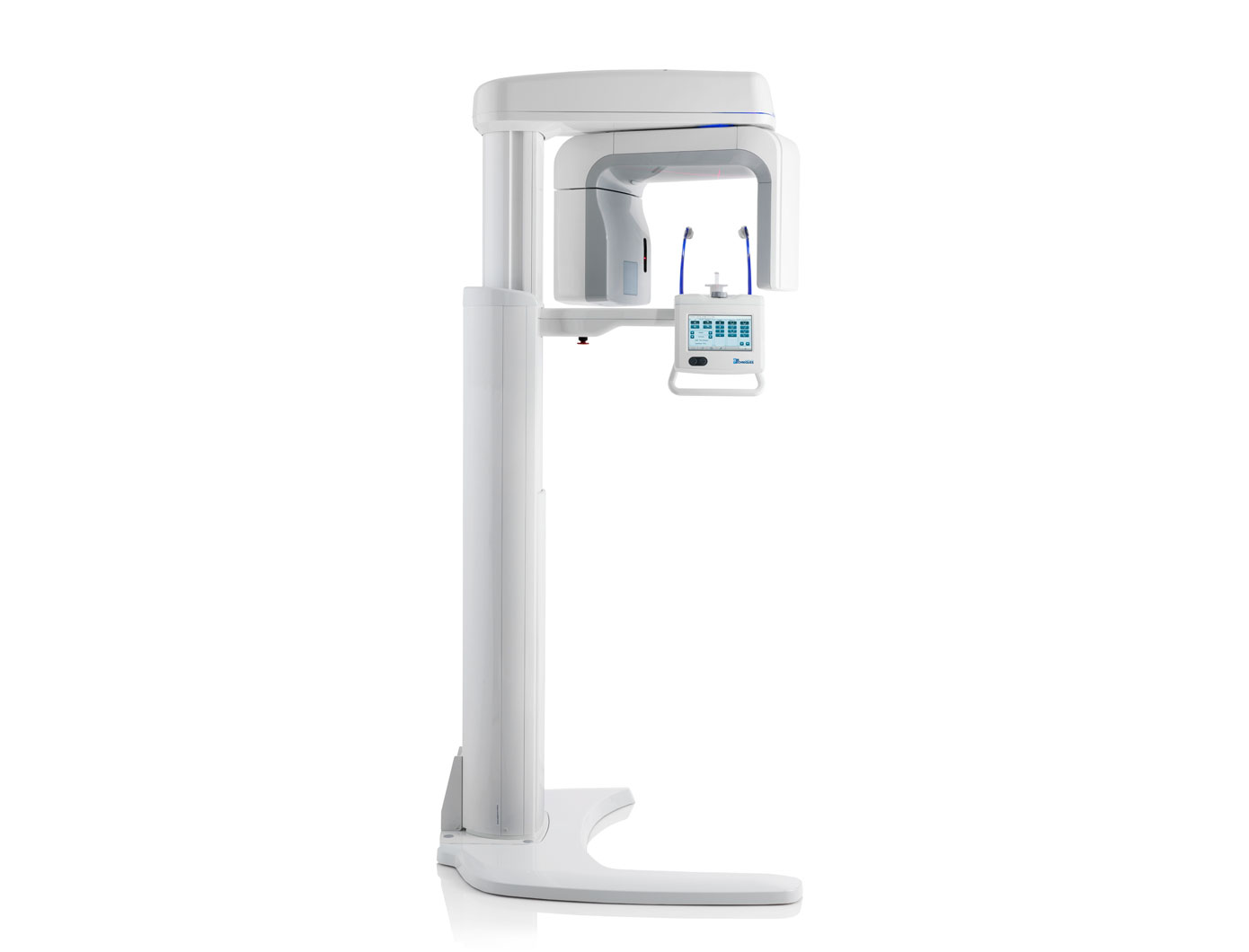

ProVecta S-Pan Panoramic X-Ray

The ProVecta S-Pan from Air Techniques sets a new standard in sharpness of extraoral imaging.

This 2D panoramic system offers ease of handling and optimal workflow, supported by an innovative 7” touch display. The ProVecta S-Pan owes its excellent imaging performance to two innovative technologies. First, the modern CsI sensor technology which enables better image quality and, hence, significantly easier diagnosis. Second, the S-Pan technology which considers the individual patient’s anatomy and several accordingly aligned layers to create a pin sharp panoramic image at any spatial position of the tooth and jaw.

HIGH-SPEED SCANNING WITH LOW X-RAY DOSE

• Extremely fast: OPG image from 7 seconds – with especially low dose.
• Important diagnostic information is sharply displayed, including the mandibular canal and bone structure
• The child modes reduce the dose by 45-56% and shorten the scan time, without loss of diagnostic information
• Stabilizing handles compensate for patient movement
• Audio announcements for staff and patients
• Long vertical path accommodates tall patients and wheelchair users
• TWAIN-compliant imaging software

"ProVecta S-Pan's ease of use, high quality images and quick image acquisition helps to reduce stress for me, my staff and my patients."

- MELISSA ROSENFELD, DDS

KEYS TO PANORAMIC PERFECTION

• S-Pan technology for simpler diagnosis and unmatched image quality
• CsI sensor for better image quality and reduced radiation
• Automatically selects the sharpest areas, resulting in sharper images and faster, easier diagnosis
• Selects from 20,000 image fragments to create one exceptional image

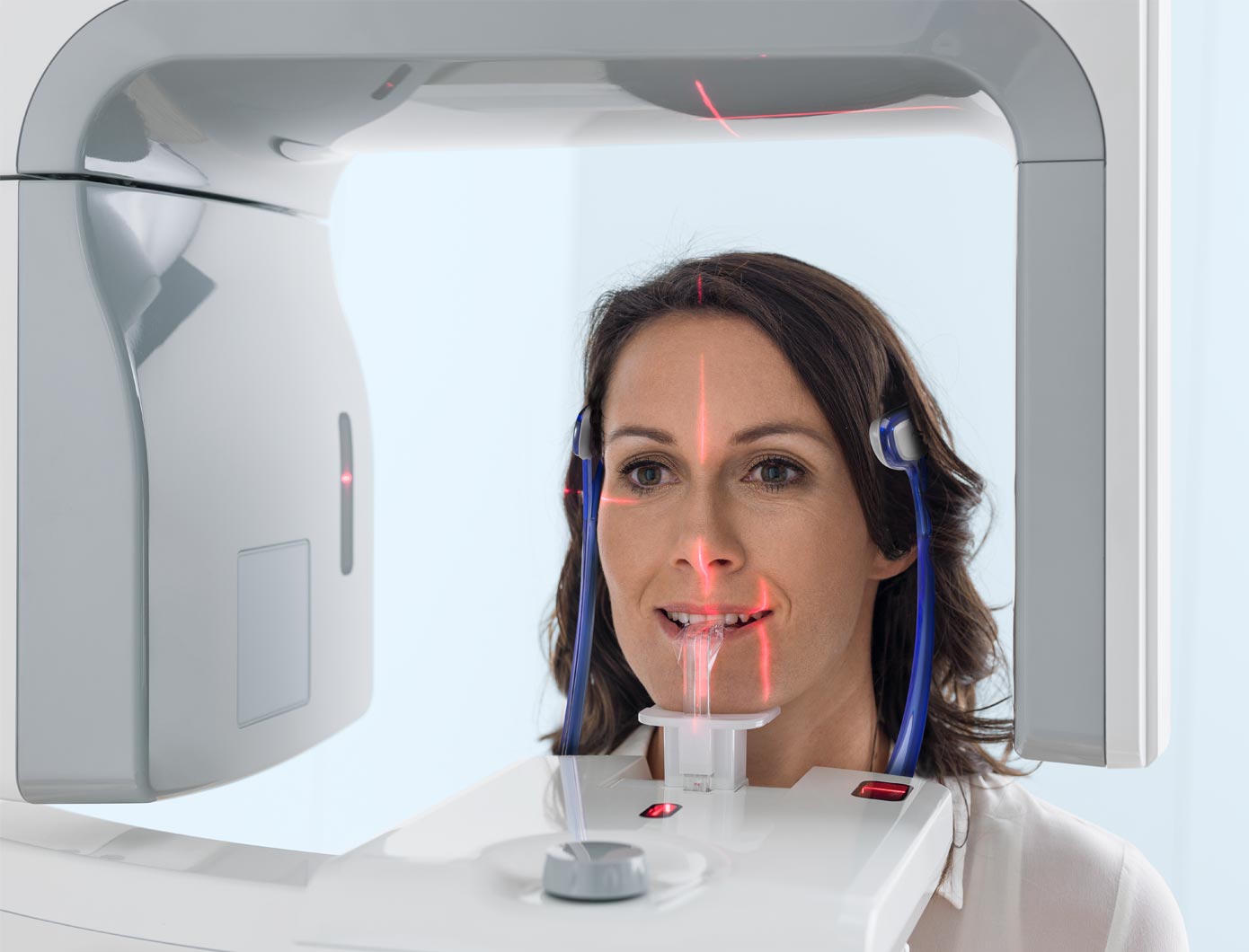

• 7” touch display for intuitive handling – Easy face-to-face positioning, 3 positioning lasers
• Slim design, small footprint
• All 17 X-ray programs included for unmatched ease of diagnosis: 1 Standard Panoramic; 3 Half-page: right, left and front; 4 Child modes of exposure with smaller exposure area; 5 Orthogonal; 2 TMJ for functional diagnosis; 2 Sinus for paranasal sinuses

Maximum height	89.88" | 2283mm
Weight without pedestal	231 lbs | 105 kg
Weight with pedestal	342 lbs | 155 kg
Height adjustment range	27.56" | 700mm
Dimensions including rotation (WxDxH)	38.97" x 44.88" to 45.67" x 89.88" | 990mm x 1140mm to 1160mm x 22.83mm
Installation	Wall Mount (Pedestal Optional)
Mains voltage	200-240 VAC
Frequency	50/60 Hz
Rated power	2.2 kVA
Magnification factor	1.3
Tube voltage and current	60-99 kV, 4-16 mA
Focal spot size	0.5 mm (IEC60336)
Total filtration	2.8 mm AL
Model	CsI Sensor
Pixel Size	100 µm
Active sensor surface	6 x 150.4mm
Frame Rate	300 fps
